Catalogue of CDL Series high presion manual metal lathe machine for sale
- 1000 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
You May Like
-
CW6280Ex2000 conventional horizontal lathe machine
-
CW6280Ex750 universal horizontal lathe machine
-
105/130mm Large Spindle Bore Horizontal GAP Lathe Hot-sale CW6280E
-
Large Spindle Manual Horizontal Lathe Machine Hot-sale CW6280E
-
CDL6236x1500 china high speed small turning lathe
-
CDL6241x1500 Light duty high speed universal metal lathe machine
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Semi-Automatic | |
| Max. Swing Diameter | 510mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CDL6236 CDL6241 CDL6246 CDL6251 | |
| Voltage | 220V 380V 400V 415V 440V 480V 50/60Hz | Power(W) | 3.5~5.5kW | |
| Dimension(L*W*H) | depends | Weight | depends | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

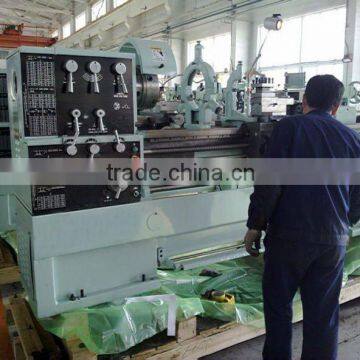

CDL Sereis high precision manual lathe machine
1. The machine is designed according to the character ergonomics and CE requirement.
2. Spindle is tested by dynamic balance test.
3. Forced lubricating system
4. guide rail--high frequency quenching
5. It is equipped with fast moving device, which is easy to operate.
Item | CDL6236 | CDL6241 | CDL6246 | CDL6251 | |
specification | |||||
Max swing over bed | 360mm | 410mm | 460mm | 510mm | |
Max swing over carriage | 180mm | 230mm | 270mm | 320mm | |
Center distance | 750mm 1000mm 1500mm | ||||
Max swing in gap | 590mm | 640mm | 675mm | 735mm | |
Width of bed | 300mm | ||||
Head stock | |||||
Spindle nose | C6/D6 | D6 | D8 | ||
Spindle bore | 48mm | 52mm | 82mm | ||
Taper of spindle bore | M6 | 1:20(F 90) | |||
Spindle speeds | 32-2000rpm (12 speed) | 16-1600rpm (12 speed) | |||
Thread | |||||
Range of inch threads | 2-56TPI | ||||
Range of metric threads | 0.5-14mm | ||||
Range of module threads | 0.5-14mm | ||||
Range of Di metrical pitch thread | 2-56 D.P | ||||
Longitudinal feed | 0.06-0.82mm/rev(0.002"-0.032"/r) | ||||
Cross feed | 0.017-0.242mm/rev(0.007"-0.0095"/r) | ||||
Lead screw diameter | 36mm | ||||
Pitch of lead screw | 6mm | ||||
Tailstock | |||||
Taper of tailstock quill | M4 | ||||
Travel of tailstock quill | 150mm | ||||
Diameter of tailstock quill | 60mm | ||||
Motor | |||||
Power of main motor | 3/4.5kW(4/6HP) | 5.5kW | |||
Power of coolant motor | 90W(0.125HP) | 90W | |||
Net weight | 1228kg 1353kg 1593kg | 1630 2010 2220kg | 1660 2040 2250kg | ||
Gross weight | 1378kg 1553kg 1893kg | 1780 2555 2720kg | 1810 2585 2750kg | ||
Packing dimensions | C.D. | WOODEN CASES | STEEL PALLET | ||
75mm | 2230×1090×2000mm | 2070×1100×1780mm | |||
1000mm | 2480×1090×2000mm | 2300×1100×1780mm | |||
1500mm | 2980×1090×2000mm | 28570×1100×1780mm | |||
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~60 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
