CW62100Ex1500 universal horizontal gap lathe machine
- 100 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
You May Like
-
CK5116SSD cnc vertical turning lathe machine with 1600mm turning height
-
Bench lathe LFM6132A 1 phase/3 phase
-
Large Spindle Bore Lathe- spindle hole 200mm
-
Smaller Economic High-speed Universal Gap Lathe
-
Catalogue of CDL Series high presion manual metal lathe machine for sale
-
CW6280Ex2000 conventional horizontal lathe machine
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 1000mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CW62100Ex1500 horizontal gap lathe machine | |
| Voltage | 220V 380V 400V 415V 440V 480V 50/60Hz | Power(W) | 11/15kW | |
| Dimension(L*W*H) | 4550x1160x2080mm | Weight | 4300kgs | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

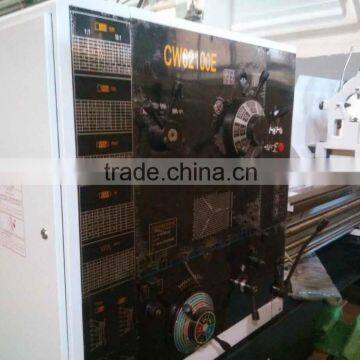

CW62100Ex1500 universal horizontal gap lathe machine
Such horizontal gap lathe machines have following features:
Standard: spindle head: C11/D11, spindle bore diameter: Φ100/105mm.
Optional: spindle head: D11, spindle bore diameter Φ130mm.
Guide rail width: 550mm.
Guide way hardness: HRC50, Depth1.5mm.
Max load weight between 2-centers: 1000kg; with steady rest: up to 2000kg.
Standard: Left-hand wheel is equipped;
Right-handed wheel shall be informed specially when placing order.
Equipped with hydraulic clutch and electrical cabinet.
Slide board boxes with vertical and horizontal rapid shift handle.
Special indication is required if tailstock sleeve is with a scale.
Specifications | Unit | Parameter |
Max. swing over bed | mm | 1000 |
Max. swing over carriage | mm | 720 |
Center distance | mm | 1500 |
Width of gap | mm | 320 |
Swing over gap | mm | 1230 |
Width of guide way | mm | 550 |
Spindle bore diameter | mm | 105/130 opt |
spindle nose |
| C11/D11 opt |
Spindle speed | rpm | (18 speeds) 7.5~1000 |
Longitudinal feed | mm/r | (64) 0.1~24.3 |
Cross feed | mm/r | (64) 0.05~12.15 |
Rapid traverse speed | m/min | 3.8 |
Metric thread | mm | (39)1~240 |
Inch thread | TPI | (26) 14~1 |
Module thread | mm | (53) 0.5~120 |
Diametrical pitch thread | D.P | (24) 28~1 |
Max. travel of cross slide | mm | 493 |
Travel of top slide | mm | 200 |
Main motor power | kW | 11 |
Rapid traverse motor power | kW | 1.1 |
Coolant pump motor power | kW | 0.09 |
Wooden box Pallet packing | mm | 4550x1160x2080 3840x1100x1920 |
Gross/Net weight | kg | 5650/4300 |
Name | Size(mm) |
3-jaw chuck | Φ400(For CW62100E) |
4-jaw chuck | Φ630(For CW62100E) |
Dead center | 2 sets |
Reducing sleeve | 1 set |
Wrench Tool | 1 set |
Oil gun | 1 set |
Instruction Manual | 1 set |
Certificate of Conformity | 1 set |
Packing List | 1 set |
