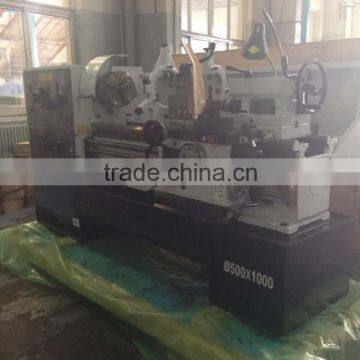

CDE series Economic universal metal lathe CDE6250 for sale

FOB Price

USD $5,953 - $10,498 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Semi-Automatic
Max. Swing Diameter	660mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CDE6240A CDE6250A CDE6266A
Voltage	3Phx220V 380V 400V 415V 440V 480V	Power(W)	5.5kW/7.5kW
Dimension(LWH)	Depends	Weight	Depends
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

CDE series Economic universal metal lathe

Main Features

Such conventional metal gap lathe machine has following features:

Main Usage

Such conventional metal gap lathe machine has following usages:

It can machine inner circle, outer circle, and end and head surface, taper surface;
Gap lathe can process the deformation parts;
Function is including the drilling and reaming;
Threads cutting: Metric, inch, diametrical pitch, module thread;

Auto Production Line

Main Technical Data

Item		CDE6240A	CDE6250A	CDE6266A
Max. swing over bed		400mm	500mm	660mm
Max. swing over carriage		220mm	290mm	430mm
Max. swing over gap		700mm	760mm	910mm
Width of guide way		394mm
Dia. of spindle bore		52mm
Taper of center sleeve		Morse No.6
Spindle speed		11-1400rpm/22speeds
Longitudinal feed		0.035-2.842mm/rev
Cross feed		0.009-0.804mm/rev
Metric thread		0.5-240(66)
Whitemouth thread		80-1/4(49)tpi
Module thread		0.25-120(57)mm
Diametrical pitch thread		160-7-16DP(50)mm
Section of tool shank		25×25
Travel of top slide		150mm
Max. travel of cross slide		348mm	348mm	393mm
Pitch of longitudinal lead screw		12mm
Travel of tailstock center sleeve		150mm
Diameter of tailstock center sleeve		75mm
Taper of tailstock center sleeve		Morse No.5
Main motor power		7.5kW(50Hz)/5.5kW(60Hz)
Wooden case/Steel pallet Gross/net weight(kg)	750mm	2740×1150×1900/2580×1120×1610mm
		2770/2070	2820/2120	2928/2228
	1000mm	2990×1150×1900/2800×1120×1610mm
		2815/2120	2865/2170	2973/2278
	1500mm	3490×1150×1900/3300×1120×1610mm
		3905/2170	2955/2220	3063/2328
	2000mm	3990×1150×1900/3800×1120×1610mm
		2995/2280	3045/2330	3153/2438
	3000mm	4990×1150×1900/4800×1120×1610mm
			3245/2330	3493/2798
