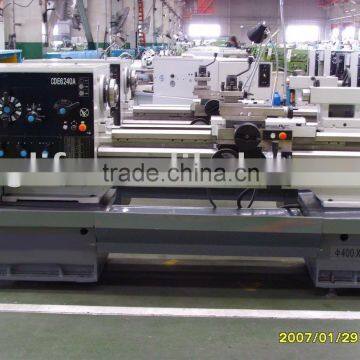

Economic Universal Lathe with GAP at Lower price
- 1000 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Semi-Automatic | |
| Max. Swing Diameter | 660mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CDE6240A CDE6250A CDE6266A | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 5.5kW | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CDE Lathe Machine Parameter
It can machine inner circle, outer circle, and end and head surface, taper surface. Gap lathe can process the deformation parts. Function is including the drilling and reaming. Metric, inch, diametrical pitch, module thread The bed is made of high-grade cast iron, the guide way is super audio frequency quenching.
The CDE series lathe can process Steel, cast iron, non-metal material
The precision can reach up to IT7 level; the surface roughness can be up to 1.6 grade
It can machine inner circle, outer circle, and end and head surface, taper surface. Gap lathe can process the deformation parts. Function is including the drilling and reaming.Metric, inch, diametrical pitch, module thread The bed is made of high-grade cast iron, the guide way is super audio frequency quenching.
Item | CDE6240A | CDE6250A | CDE6266A | |
Max. swing over bed | 400mm | 500mm | 660mm | |
Max. swing over carriage | 220mm | 290mm | 430mm | |
Max. swing over gap | 700mm | 760mm | 910mm | |
Width of guide way | 394mm | |||
Dia. of spindle bore | 52mm | |||
Taper of center sleeve | Morse No.6 | |||
Spindle speed | 11-1400rpm/22speeds | |||
Longitudinal feed | 0.035-2.842mm/rev | |||
Cross feed | 0.009-0.804mm/rev | |||
Metric thread | 0.5-240(66) | |||
Whitemouth thread | 80-1/4(49)tpi | |||
Module thread | 0.25-120(57)mm | |||
Diametrical pitch thread | 160-7-16DP(50)mm | |||
Section of tool shank | 25×25 | |||
Travel of top slide | 150mm | |||
Max. travel of cross slide | 348mm | 348mm | 393mm | |
Pitch of longitudinal lead screw | 12mm | |||
Travel of tailstock center sleeve | 150mm | |||
Diameter of tailstock center sleeve | 75mm | |||
Taper of tailstock center sleeve | Morse No.5 | |||
Main motor power | 7.5kW(50Hz)/5.5kW(60Hz) | |||
Wooden case/Steel pallet Gross/net weight(kg) | 750mm | 2740×1150×1900/2580×1120×1610mm | ||
2770/2070 | 2820/2120 | 2928/2228 | ||
1000mm | 2990×1150×1900/2800×1120×1610mm | |||
2815/2120 | 2865/2170 | 2973/2278 | ||
1500mm | 3490×1150×1900/3300×1120×1610mm | |||
3905/2170 | 2955/2220 | 3063/2328 | ||
2000mm | 3990×1150×1900/3800×1120×1610mm | |||
2995/2280 | 3045/2330 | 3153/2438 | ||
3000mm | 4990×1150×1900/4800×1120×1610mm | |||
| 3245/2330 | 3493/2798 | ||
