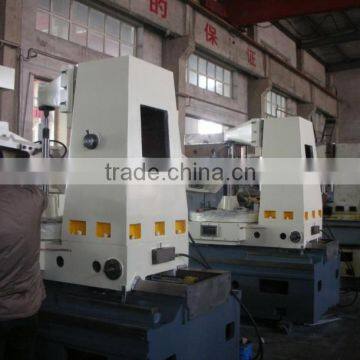

Y31125E Economic Manual gear hobbing machine for sale

Max. hobbing modulus

mm

Steel: 12

Cast iron: 16

Maximum workpiece diameter when processing straight tooth gear

mm

With rear column: 1000

Without rear column:1250

Machining of straight tooth maximum work piece width(Center distance ≥ 200)

mm

450

Hob slide maximum stroke

mm

470

Machining of straight tooth maximum work piece diameter

mm

With after column: 1000

without After column: 1250

Tool axis and table surface distance

mm

Max. 690

Min. 220

Tool axis and table axis distance

mm

Max. 750

Min. 120

Spindle hole

Morse 6

Max. dimension of cutter

mm

260

Max.length of cutter

300

Cutter can transplant the shaft diameter

mm

27/32/40/50

Tool max. axial movement

mm

100

Table max. loading capacity

T

3

Diameter of work table

mm

1000

Worm wheel diameter

mm

825

Pore diameter of work table

mm

220

Taper bore of workpiece mandrel

Morse 6

Degree of spindle rotation

Class 7

Rotary range of spindle

r/m

16~125

Degree of vertical feed rate

Class 8

Range of vertical feed rate

mm/r

0.47~5.28

work table rotation

Vertical rapid moving speed of sliding carriage

m/min

0.525

Vertical manual rotation speed of sliding carriage

mm/r

0.63

Rapid moving speed of work table

m/min

0.47

Accuracy of radial manual federate of work table

mm

0.02

Power and rated speed of main motor

kW

N=11(1440 r/m)

Power and rated speed of rapid motor

kW

N=3(1420 r/m)

Power and rated speed of rapid motor of work table

kW

N=1.5(940 r/m)

Power and rated speed of motor of hydraulic oil pump

kW

N=1.5(940 r/m)

Power and rated speed of motor of cooling pump

kW

N=0.4(2800 r/m)

Machine overall dimension (length×width×height)

mm

3750×2040×2500

Machine weight

T

13
