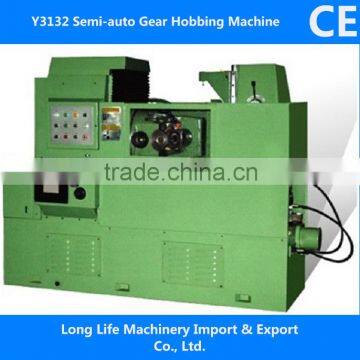

Y(NH)3132 CE smaller semi auto gear hobbing machine for sale
- Dalian/Shanghai China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Gear Hobbing Machine | |
| CNC or Not | Normal | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | Y(NH)3132 semi auto gear hobbing machine | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 7.5kW | |
| Dimension(L*W*H) | 2450x1350x1850mm | Weight | 4500kgs | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Y(NH)3132 smaller gear hobbing machineTechinical Data
such y3132 gear hobbing machine has following features:
1. It is applicable to produce or process spur gear, helical gear, worm gear and sprocket in batch or piece unit.
2. This machine is provided with the characteristic of excellent steel resistance, high intension, high precision, easy-operating, adjusting and maintaining etc.
3. It can process gear with down milling and up milling method in axial or radial way.
4. According to the requirements of customer, this machine can be equipped with Siemens CNC System to process crown
gear and Small Taper Gear, and it can also heighten or lengthen machine tool.
Specifications | Unit | Y(NH)3132 gear hobbing machine |
Maximum diameter to be hobbed | mm | 320 |
Maximum modulus | mm | 8 |
Maximum angel of helix |
| ±45° |
Worktable diameter | mm | 360 |
Diameter of worktable bore | mm | 80 |
Diameter from the hob center worktable centers | mm | 30~300 |
Diameter form the hob center worktable surface | mm | 235~535 |
Maximum diameter of hob | mm | 160 |
Maximum length of hob | mm | 160 |
Maximum axial movement of the hob | mm | 55 |
Cone of the spindle bore | r/mm | MT 5 |
Hob spindle speeds in 8(9) steps
| mm/r | 40~250(9) |
Axial federates | mm | 0.4~4 |
Hydraulic withdrawal of the worktable | mm | 50 |
Power of the main drive motor | kW | 4 |
Total power consumption | kVA | 7.5 |
Net weight/Gross weight | kg | 4500 |
Machine overall dimension (length × width ×height) | mm | 245×135×185 |
The measure of area (length × width ) | mm | 2500×1900 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
Contact Us
- Long Life Machinery Import And Export Co., Ltd.
- Contact nameTeresa Liu Chat Now
- Phone86-411-81106819
- Address415 room, No.872, Xinan road, Shahekou district, Dalian, Liaoning
