LFM8280Bx3000 CE crankshaft grinding machine

FOB Price

US$ 68,317 - 70,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Crankshaft Grinding Machine
CNC or Not	Normal	Max. Grinding Diameter	800mm
Max. Grinding Length	3000mm	Place of Origin	Shanghai, China
Brand Name	LFM	Model Number	LFM8260Bx3000 crankshaft grinding machine
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	15kW
Dimension(LWH)	541021302210mm	Weight	7500kgs
Certification	CE Certificate; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

LFM8280Bx3000 crankshaft grinding machine

Main Usage

such crankshaft grinding machine has following features:

a. Such machine is suitable for grinding the crankshaft of marine diesel engines and vehicle diesels.

b. It is applied to batch-production, single-piece production or repair factories.

c. It can also be used for cylindrical grinding.

Working Accuracy

1. Roundness 0.015mm

2.Cylindricity 0.015mm

3. Roughness: cylindrical / end- face Ra 0.4 / Ra0.8

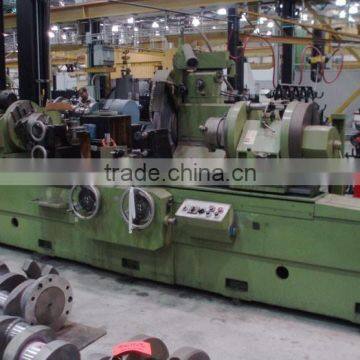

Detailed Photos

Main Technical Data

Specifications	Unit	Parameter
Max. swing Dia.	mm	800
Dia. to be ground	mm	Max. 300 Min. 100
Radius of crankpin	mm	Max. 160 Min. 0
Radius of crankpin	mm	150
Center height	mm	420
Length of work	mm	1200~ 3000
Max. weight of work	kg	400
Workhead center tapered bore		Morse #6
Tailstock center tapered bore		Morse #6
Guide-way dimensions: width x center distance	mm	For machine bed : 120 x 110 x 360
Guide-way dimensions: width x center distance	mm	For wheelhead : 150 x 140 x 600
Dimensions of Wooden Case;	cm
Gross weight	kg

General Performance

Free Std Accessories

Specifications	Unit	Note
Work Dia. clamping between right and left chuck	mm	100~ 300
Work Dia. supported by steady rest	mm	100 ~300
Wheel peripheral and end-face dresser		with
Suspension type measuring stand	mm	100 ~ 200
