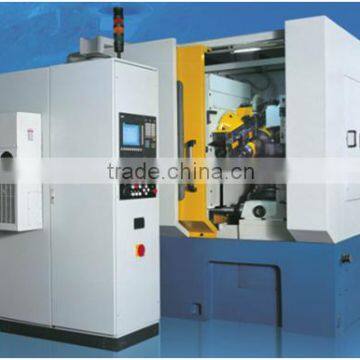

YKX3132 CE china 4 axes cnc gear hobbing machine
- Dalian China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Gear Hobbing Machine | |
| CNC or Not | Normal | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | YKX3132 cnc gear hobbing machine | |
| Voltage | 220V 380V 400V 440V | Power(W) | 11kW | |
| Dimension(L*W*H) | 2360x1770x2360mm | Weight | 10000kgs | |
| Certification | CE; ISO9001:2008; GB/T19001:2008; | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
YKX3132 4-axes cnc gear hobbing machine technical data
Such cnc gear hobbing machine has following features:
1. The radial feeding(X axis), axial feeding(Z axis), hob shifting (Y axis) are directly controlled by AC servo motors of their own, thus featuring in shout transmission chain, good transmission rigidity and high transmission accuracy. The control axis(W axis) of the differential drive mechanism is actuated by a servo motor without any need of differential change gears thus changing the conventional device mode completely and simplifying the mechanical drive structure as well.
2.The main drive is transmitted from a frequency-controlled motor, enabling the spindle to run at an infinitely variable speed within a range of 150 to 600rpm and at a cutting speed within a range of 70 to 120m/min. The main drive motor has a power of 11kW sufficient for heavy-duty cutting and high federate of a multi-start hob as well.
3.The major guideway pair is of rectangular shape with a big flat surface and is coated with Teflon. The drive is transmitted via ballscrews, thus featuring in good transmission rigidity, heavy load carrying capacity and high movement straightness. The radial rapid speed is up to 2.4m/min. and the axial rapid speed is up to 4m/min.
Specifications | Unit | Parameter |
Max. workpiece dia. x max. module: | mm | Φ320×8 |
Max. workpiece dia. | mm | Φ320 |
Max. module | mm | 8 |
Max. helix angle to be cut |
| ±60° |
No. of work teeth to be cut |
| 5~100 |
Max. diameter of hob to be mounted | mm | 150 |
Max. length of hob | mm | 185 |
Max. axial movement of hob | mm | 130 |
diameter of hob arbors (each 1) | mm | 32, 40, 50 |
Cone of the hob spindle bore |
| MT 5 |
Horizontal distance hot center to worktable | mm | 40~340 |
Distance from column center to the worktable | mm | 320~680 |
Diameter of worktable | mm | 350 |
Diameter of worktable bore | mm | 140 |
Distance from the worktable surface to the bottom of the machine bed | mm | 1100 |
Hob spindle speed | mm/min | 150~600(variable-frequency) |
Axial federates(Z-axis) | mm/min | 1~1000(infinite) |
Axial rapid travel speeds(Z-axis) | mm/min | 1000~2400(infinite) |
Radial federates(X-axis) | mm/min | 2~1000(infinite) |
Radial rapid travel speeds(X-axis) | mm/min | 1000~4000(infinite) |
Tangential travel speeds (Y-axis) | mm/min | 100 |
Max. speed of worktable | rpm | 30 |
Total power consumption | kW | 29 |
Main drive motor mode | kW | 11 |
Servo motor for the axial feed(Z-axis) | kW | 3.4 |
Servo motor for the radial feed(X-axis) | kW | 3.4 |
Servo motor for the differential (W-axis) | kW | 3.4 |
Servo motor for the hob shifting (Y-axis) | kW | 0.78 |
Net weight of machine | kg | 10000 |
Overall dimensions of machine | mm | 2360×1770×2360 |
kinds of colors for your choice/can be customized
