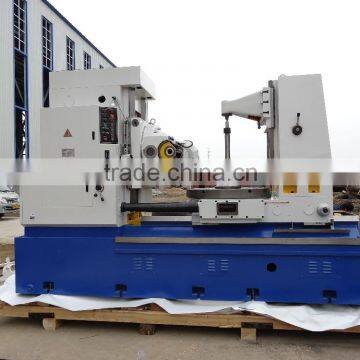

CE Larger Manual Gear Hobbing Machine Hot-sale Y31125E
- Dalian China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Gear Hobbing Machine | |
| CNC or Not | Normal | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | Y31125E Y31200E Y31315 Y31160E Y31315 Y31400 Y31250E | |
| Voltage | 220V 380V 400V 415V 440V 480V | Certification | CE Certificate; ISO9001:2008; GB/T19001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Techinical Specification
For detailed information, to: export(at)
Machine Features
1. It is applicable to produce or process spur gear, helical gear, worm gear and sprocket in batch or piece unit.
2. This machine is provided with the characteristic of excellent steel resistance, high intension, high precision, easy-operating, adjusting and maintaining etc.
3. It can process gear with down milling and up milling method in axial or radial way.
4. According to the requirements of customer, this machine can be equipped with Siemens CNC System to process crown
gear and Small Taper Gear, and it can also heighten or lengthen machine tool.
Specifications | Unit | Y31125E | Y31200E | YA31160E | YAQ31200E | YQ31250E |
Maximum hobbing modulus | mm | 16 (Cast iron) | 16 (Cast iron) | 20 (Cast iron) | 20 (Cast iron) | 20 (Cast iron) |
Maximum workpiece diameter when processing straight tooth gear | mm | 1250 | 2000 | 1600 | 2000 | 2500 |
Maximum travel of tool post slide | mm | 470 | 470 | 520 | 610 | 760 |
Spindle taper hole |
| Morse 6 | Morse 6 | Morse 6 | Morse 6 | Morse 6 |
Maximum dimension of cutter | mm | 260(Diameter) | 260 (Diameter) | 260 (Diameter) | 260 (Diameter) | 260 (Diameter) |
| mm | 300 (Length) | 300 (Length) | 300 (Length) | 300 (Length) | 300 (Length) |
Diameter of changeable hobbing centre axis | mm | 27, 32, 40, 50 | 27, 32, 40, 50, 60 | 32, 40, 50, 60 | 32, 40, 50, 60 | 27, 32, 40, 50, 60 |
Maximum axial movement of cutter | mm | 100 | 100 | 100 | 100 | 100 |
Maximum loading capacity of work table | T | 3 | 3 | 3 | 3 | 5 |
Diameter of work table | mm | 1000 | 1000 | 1200 | 1200 | 1380 |
Degree of vertical feed rate | steps | 8 | 8 | 10 | 10 | 8 |
Power of main motor | kW | 11 | 11 | 15 | 15 | 15 ( |
