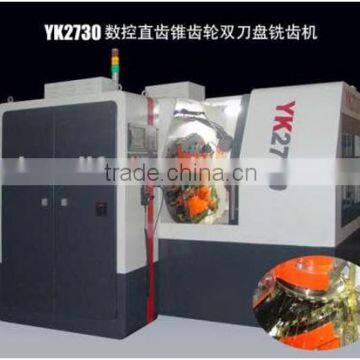

YK2730 cnc double cutter straight bevel gear cenerator

FOB Price

US$ 156,000 - 157,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gear Milling Machine
CNC or Not	Normal	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	YK2730 straight bevel gear cenerator
Voltage	220V 380V 400V 415V 440V 480V	Power(W)	20 kW in all
Dimension(LWH)	2400x1800x1800mm	Weight	8000kgs
Certification	CE; ISO9001:2008; GB/T19001:2008;	After-sales Service Provided	Engineers available to service machinery overseas

YK2730 cnc gear milling machine Techinical Data

Main Features

Such cnc gear milling machine has following features:

The machine is designed for rough cutting or finish cutting straight bevel gears and it’s especially suitable for cutting gears with crowned teeth.
The machining efficiency is very high, about 3 ~5 times higher than machines of the same specifications, and the machine noise level is low.
The machining accuracy of the machine can reach Grade 6 of the GB Standard.
The machine is suitable for cutting straight bevel gears used in gear boxes, speed reducers, precision transmissions, etc. and also for cutting differential gears used on the rear axles of luxury cars.
A SIEMENS 828D CNCcontrol system is equipped on the machine and this is a 4-axis CNC machine with 3- axis simultaneous movements. A spindle servo motor controls the stepless speed regulation of the cutter spindle. Tool setting and cutter adjustments can be performed through the electronic hand wheel.
The structural layout of the double cutter brackets is unique to guarantee a reasonable space in the high rigidity condition of the machine.
Both the cradle and the workhead are driven by means of high precision worm and worm wheel pairs. All the structure and the transmission of the machine are rigidly designed.
All the CNC control system, the major electrical components, the bearings and the sealing parts are imported ones to ensure the reliability of the machine.
The machine has a free-standing sealed electrical cabinet equipped with a thermo-control device.
An enclosure and an auto chip conveyor are equipped on the machine.

Main Technical Data

Specifications	Unit	Parameter
Max. module of work	mm	6
Max. cone distance of work	mm	160
Pitch angle (at 90º shaft angle)		5º 42’~84º 18’
Extreme ratio (at 90º shaft angle)		1 : 10
Max. diameter of work	mm	300
Max. face width of work	mm	40
Teeth number		5 ~150
Max. adjusting angle of cutter head		9º
Distance between face of work spindle and machine center	mm	70~390
Time for cutting one tooth	s	4 ~69
Cutting speed	m/min.	30 ~ 85
Diameter of taper hole of work spindle at large end	mm	100
Taper of work spindle hole		1 : 20
Cutter diameter	mm	254 (10”)
Max. cradle roll		above zero line: 30º
Max. cradle roll		below zero line: 30º
Power of main motor	kW	3.7
Speed of main motor	rpm	800 ~1500
Power of coolant motor	kW	0.25
Speed of coolant motor	rpm	2800
Total power of machine	kva	20
Overall dimensions	mm	2400×1800×1800
Machine weight	kg	8000
