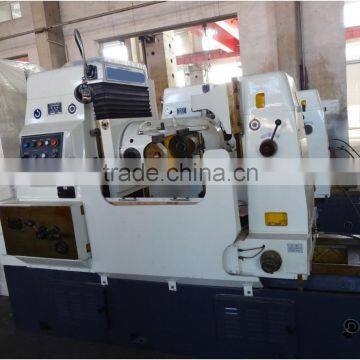

Manual Hot-sale Gear Hobbing Machine Y3180H
- Dalian China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Gear Hobbing Machine | |
| CNC or Not | Normal | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | Y3180H | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 11kW | |
| Certification | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Techinical Specification
Machine Features
Performance and features of this machine
This machine is suitable for large batch, small batch and single production of cylindrical spur, helical gears, worm wheel and chain wheel etc. with the process method of continuous cent.
This machine tool with wide bed, has features of good rigidity, high strength and precision, easy operation, adjustment and maintenance etc. This machine has a column set and work table moving structure which is helpful for the stability during processing. Indexing worm gear of work table adopts precise worm wheel machine tool and special worm rod grinding bed for processing, which ensured high index precision. The worm wheel is made of high-quality copper which enhanced capacity of abrasion resistance.
The casting parts of machine tool is processed with precipitation heat treatment, which eliminated casting internal stress and avoided machine tool deformation. Machine bed and column guideway is processed with grinding treatment after quenching, which raised the hardness of guideway surface and enhanced capacity of abrasion resistance.
The adoption of drive gear for grinding and shaving process, which ensured the transmission accuracy.
Specifications | Unit | Parameter |
Max. hobbing modulus | mm | 10[8] |
Max. workpiece diameter when processing straight gear | mm | With rear column: 550 Without rear column: 800 |
Max. workpiece width when processing straight gear (width between centre≥400) | mm | 500 |
Max. processing helix angle | ° | ±45 |
Distance from hob cutter center to worktable face | mm | Max.585 Min.235 |
Distance from hob cutter axes center to worktable axes center | mm | Max. 550 Min. 50 |
Spindle bore |
| Morse 5 |
Max. dimension of cutter | mm | Diameter: 180 Length: 180 |
Diameter of changeable hobbing centre axis | mm | 22, 27, 32, 40 |
Worktable hydraulic move distance | mm | 50 |
Diameter of work table | mm | 650 |
Hole diameter of worktable | mm | 80mm |
Max work piece width | mm | 300 |
Min number of teeth of work piece |
| 12 |
Tool head max vertical travel | mm | 350 |
Taper bore of workpiece mandrel |
| Morse 5 |
Degree of spindle rotation |
| 8 gears |
Rotary range of spindle | r/min | 40~200 |
Main motor power and rotate speed |
| N=5.5KW, 1500 r/min |
Power and rated speed of rapid motor |
| 1.1kW,1500 r/min |
Power and rated speed of motor of hydraulic oil pump |
| 1.1kW, 940 r/min |
Power and rated speed of motor of work table |
| 0.55kW, 1500 r/min |
Power of motor of cooling pump |
| 0.25kW |
Overall dimensions of machine (L×W×H) | mm | 2752×1490×1870 |
Machine weight(appr) | kg | 5500 |
