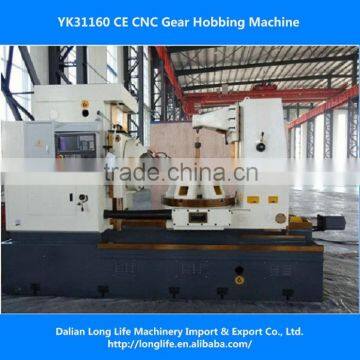

YK31160 cnc gear hobbing machine for sale

Max work piece diameter

mm

with rear column: 1300

without rear column: 1600

Max module

mm

Steel: 16

Cast iron: 20

Max work piece width

(Center distance≥400)

mm

500

Distance from cutter axis to table surface

mm

Min.220  max. 740

Distance from cutter axis to table axis

mm

Min. 190  max. 940

Spindle taper

Morse 6

Max. size of hob cutter

mm

Max. dia Φ260

Max. length 300

Max. travel of toolpost carriage(Z-axis)

mm

520

Worktable dia.

mm

1000

worktable hole dia.

mm

220

Cutter can transplant the shaft diameter

mm

32/40/50/60

Max. longitudinal travel of hub cutter

mm

100

Max. load capacity of worktable

T

3

Worktable diameter

mm

1200

worm gear diameter

mm

985

Worktable hole diameter

mm

275

Taper of mandrel seat for workpiece

Morse 6

spindle speed steps

7 steps

Spindle speed range

rpm

19~125

Min. programming amount of X/Z- axis

mm

0.001

Vertical rapid traverse speed of sliding carriage(Z-axis)

m/min

0.5

Rapid traverse speed of worktable(X-axis)

m/min

0.5

Power and rated speed of main motor

kW

N=15  1440 r/min

Servo motor for Z-axis

1FK7-103  2000 r/min

Servo motor for X-axis

1FK7-103  2000 r/min

Power and rated speed for hydraulic oil pump motor

kW

N=1.5  940 r/min

Power and rated speed for coolant pump motor

kW

N=0.4V  2800 r/min

Overall dimensions(Lx W x H)

mm

4082×2390×2520

Machine weight

T

17

1. 1.

Gear hobbing machine

YKL31160(L*W*H)
(4650*2200*2700mm)

1

About 17T
(20′OC)

1. 2.

Hob Arbor

Φ27

1

1. 3.

Hob Arbor

Φ32

1

1. 4.

Hob Arbor

Φ40

1

1. 5.

Hob Arbor

Φ50

1

1. 6.

Hob Pad

Φ27

10

1. 7.

Hob Pad

Φ32

9

1. 8.

Hob Pad

Φ40

8

1. 9.

Hob Pad

Φ50

7

1. 10.

Arbor Flat Pad

Φ27

1

1. 11.

Arbor Flat Pad

Φ40

1

1. 12.

Arbor Nut

M24×1.5

1

1. 13.

Arbor Nut

M36×1.5

1

1. 14.

Arbor Bushes

Φ27

1

1. 15.

Arbor Bushes

Φ40

1

1. 16.

Fastening screw

M24

1

1. 17.

Change Gears

M=3  a=20°

61

1. 18.

Differential wheel frame

1

1. 19.

Hanging axle

1

1. 20.

Nut Wrench

1

1. 21.

Square Wrench

1

1. 22.

Mandrel Wrench

1

1. 23.

Operating manual

1
