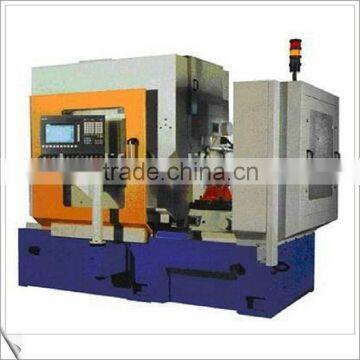

YK5150 CE cnc gear shaping machine

Such cnc gear shaping machine has following features:

Gear shaping machine Application

High efficiency and high precision CNC gear shaping machine of this series equipped with nice and environmental protection full guard adopt the longitudinal layout and their radial feed is performed by the transverse entire column. Gears of modules from 0.125mm to 10mm can be accommodated and the machining accuracy can read Grade 6 of the GB Standard(GB/T10095.1-2008). Typical work-pieces such as internal gears in the deep holes and the cluster gears can be machined when a slide-type saddle is equipped on the machine. Non-circular gears, tri-angle-shape internal gears used in the internal  gear pumps and special gears can be cut when special equipment. The machine are suitable for the single-job or small-lot production and preferable for the mass production on the production line.

The major components and parts used on these machines are built in our own plant, especially the core technology components and parts, such as high-precision worm and worm wheel pairs, the hydrostatic mechanism, the special-curve double roller cam cutter relieving mechanism, precision holes and shafts. All these are machined and tested by the imported precision manufacturing and testing equipment.

 In addition, to guarantee the entire rigidity and the stability of the accuracy of the machines, we adopt only the well-known brands at home and abroad for the purchased components and parts such as the CNC control system, the bearings, the lead screws, the hydraulic sealing, the air conditioners, etc.
