Y3150 manual gear hobbing machine for sale
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Gear Hobbing Machine | |
| CNC or Not | Normal | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | Y3150 gear hobbing machine | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 7.5kW | |
| Dimension(L*W*H) | 2440x1270x1920mm | Weight | 4500kgs | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

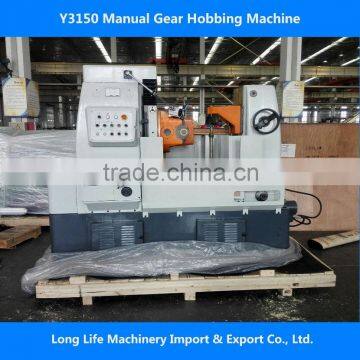

Y3150 manual gear hobbing machine
y3150e manual gear hobbing machine has following features:
1. it is capable of cutting spur and helical gears, worm wheels, sprockets and short spline shafte in one-off, small-scale and a large-scale production.
2. The machine features reasonable construction, high rigidity, high working accuracy, easy operation, and simple setup.
3. It can work in the conventional or climb method. It is equipped with an automatic shut-down device, safety-securing mechanisms and an automatic lubricating system. The machine can be furnished with imported hydraulic components or tangential hob head for cutting worm wheel in tangential feed mode on customer’s request.
4. Machining accuracy: class 7.
5. workpiece is clamped on tailstock by hand;
Specifications | Unit | Parameter |
Max. Dia of work piece | mm | 500 |
Max. modulus (casting iron / steel work piece ). | mm | 8/6 |
Max. machining width | mm | 300 |
Minimum hobbing gear teeth |
| 5 |
Max. travel of carriage in vertical direction. | mm | 400 |
Max. helix angle in turning bevel gear . |
| ± 45º |
Distance between axis of cutter and work table face | mm | 235 ~635 |
Spindle taper |
| MT5 |
Max. dimension of cutter ( Dia. x Length ). | mm | 160 x 180 |
Max. axial movement of cutter. | mm | 180 |
Diameter of changeable hobbing arbor | mm | 22,, 27,32 |
Distance from hob center to worktable center. | mm | 30~330 |
Rapid moving speed of work table. | mm | 50 |
External Diameter / bore diameter of work table. | mm | 510/80 |
Spindle speed steps |
| 9 |
Spindle speed range | rpm | 40~250 |
Axial feeds range | mm/rev. | 0.4~4 /12 steps |
Power of main motor synchro-speed | kw/rpm | 4/1500 |
Power of rapid axial motor synchro-speed | kw/rpm | 1.1/1500 |
Power of rapid worktable motor synchro-speed | kw/rpm | 1.1/1000 |
Power of pump motor synchro-speed. | kw/rpm | 1.5/1500 |
Net weight | kg | 4500 |
Overall size | mm | 2440 x 1270 x 1920 |
