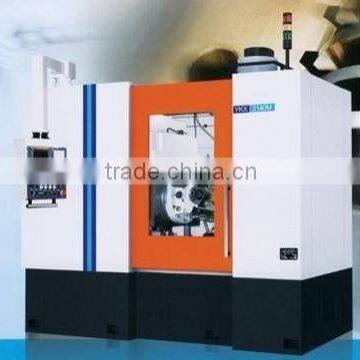

YKX3150 CE cnc gear hobbing machine

Such cnc gear hobbing machine has following features:

• The model YKB3150 is a 2 axes CNC gear hobbing machine, YKB3150/YKB3180 is a 2 axes precision CNC one. The CNC axes are: X axis —radial feed motion, Zaxis—axial feed motion. On the principle generating method, machine is capable of cutting cylindrical spur and helical gears, crowning and slightly tapered gears, as well as sprockets and worm wheels. The machine is best suited for heavy—truck, mining machinery, ship and motorcar industries in jobbing or batch production.
• The machine has features as follows:
• With vertical design, through preloaded ball screws, it can cut crowning and slightly tapered gears by axial and radial coordinated control.
• The function of automatic hob shifting reduces tool's wear and increases tool's service life.
• The key hydraulic components are available from the reputed suppliers.
• The guideways are covered by plastic tiles and adopt automatic lubrication.
• The CNC systems' main features and functions are as follows:
• Equipped with SIMENS or FANUC system according to the customers' requirements,
• The electrical cabinet is equipped with a air conditioner, which helps the electrical system work steady and reliable.
• Several kinds of square cycles, climb or conventional cutting method, as well as the setting of feed rate can all be realized by programming.
• According to customers' requirements, automatic chip conveyor may be supplied.
• the semi-automatic gear hobbing machine has the same specifications and applications as that of the general-purpose machine. It adopts PLC to control it. With only once adjustment, it can perform an automatic working cycle for cutting in batch production and has an automatic hob shifting mechanism to prolong the service life of hob.

kinds of colors for your choice/can be customized
