Y5132 CE manual gear shaping machine for sale
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Gear Hobbing Machine | |
| CNC or Not | Normal | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | Y5132 gear shaping machine | |
| Voltage | Customer's Requirment | Power(W) | 7.5kW | |
| Dimension(L*W*H) | 2370x1670x2480mm | Weight | 6500kgs | |
| Certification | CE; ISO9001:2008; GB/T19001:2008; | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

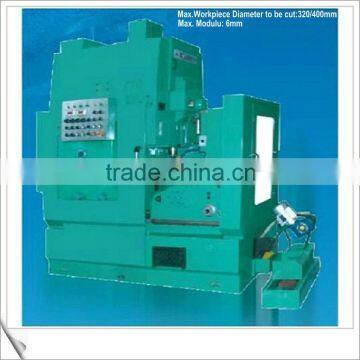

Y5132A CE manual gear shaping machine
The Model Y5132A is a Semi-Automatic Gear Shaping Machine featured with longitudinal arrangement. The cutter head can be swung to effect outward or inward tool relieving motion, the worktable can be moved for plunge feed, and the counter column can be shifted laterally for the convenience of oblique tool withdrawal. The machine operation. There are two kinds of work cycles available, i. e. the machine operates in a pre selected work cycle excluding the loading/unloading of worpieces or in an alternative work cycle excluding the hand-opeerated clamping/release of workpieces and power rapid approach/withdrawal of worktable.
The machine is featured in smooth running, low noise, versatile functions, nice adaptability, easy set-up and simple operation, thus being well-suited for mass batch production of rears adopted on automobiles and tractors. The machine can also be used for small batch and job-lot gear production.
The machine is designed for generating spur gears, cluster gears, internal gears and segment gears with a max. dia. Of 320mm, a max. module of 6mmand a max. face width of 70mm. The machine can be equipped, on request, with optional attachments for cutting racks, pinion shafts, helical gears and crowned teeth gears, etc.
Specifications | Unit | Parameter |
Max. workpiece dia. external gear | mm | external gear:320 Internal gear (mounting dia.): 400 |
Max. module | mm | 6 |
Max. tooth width | mm | 70 |
Number of teeth to be cut |
| 10~200 |
Max. length of gear rack to be cut | mm | 630 |
Max. helix angle of helical gear |
| 40° |
Stroke rate of cutter spindle per minute | times/min | N low N high 100 150 200 300 330 400 500 600 |
Circular feed per min(when cutter dia. is 100mm) | mm/min | 20~540 |
Radial feed per min(infinitely variable) | mm | 2~20 |
Max. rapid travel of worktable | mm | 160 |
Cutter spindle back-off at its up-most position | mm | 0.5 |
Column offset for oblique cutter relieving | mm | ±20 |
Max. stroke length of cutter spindle | mm | 84 |
Diameter of worktable surface | mm | 380 |
Diameter of worktable bore | mm | 120 |
Distance from cutter center to worktable center Surface | mm | 0~265 |
Distance from spindle nose to worktable surface | mm | 120~230 |
Distance from tailstock center to worktable surface | mm | 100~540 |
Main drive motor power | kW | 7.5 |
Main drive motor power speed | rpm | 1500 |
Servo motor for circular feed (power) | kW | 1.8 |
Servo motor for circular feed (speed) | rpm | 1500 |
Hydraulic pump motor (power) | kW | 1.5 |
Hydraulic pump motor (speed) | rpm | 1400 |
Chip conveyor motor (power) | kW | 0.37 |
Chip conveyor motor (speed) | rpm | 900 |
Cooling pump motor (power) | kW | 0.25 |
Cooling pump motor (speed) | rpm | 2800 |
Net weight of machine | kg | 6500 |
Overall dimensions of machine | mm | 2370x1670x2480 |
