Product Details
| Place of Origin | Zhejiang, China | Brand Name | GINLONG | |
| Model Number | Solis-2.5K-2G | Specification | Normal | |
| Application | Home | Output Voltage (V) | 220/230 | |
| Solar Power (W) | 2500Wp |
Product Description

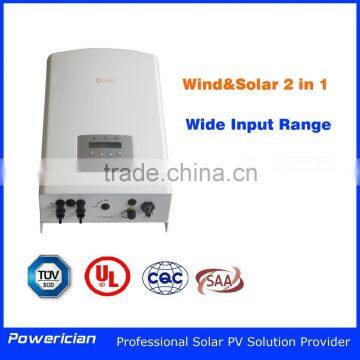

2.5KW Single Phase String Inverter Solar Wind Dual Function for Rooftop
Ginlong is a top brand solar inverter from China with high quality and excellent reliablility.
Powerician, authorized distributor of Ginlong, supply full range of Ginlong solar inverter, from 700W to 30kW.
Also, we provide whole on-grid solar power system solution with Ginlong inverter and our high quality solar panles, brackets, wires etc.
Product Description
Features
- Dual functional for both solar PV and wind turbine
- Extral wide input range
- Advancec MPPTalgorithm
- Full protection
- High efficiency
- RS485,GPRS,Wifi,mobile phone APP monitoring supported
Electrical Data
99%
| Model No. | GCI-2.5K-2G | GCI-3K-2G | GCI-3.6K-2G | GCI-4K-2G | GCI-4.6K-2G | GCI-5K-2G |
| Input | ||||||
| Max Input Power | 3KW | 3.5KW | 4.2KW | 4.6KW | 5.3KW | 5.8KW |
Max Input Voltage | 600V | |||||
Start Voltage | 120V | |||||
| MPPT Voltage | 100~500V | |||||
| Max Input Current | 10+10A | 15A+15A | ||||
| Output | ||||||
| Rated Output Power | 2.5KW | 3KW | 3.6KW | 4KW | 4.6KW | 5KW |
| Max Output Power | 2.8KW | 3.3KW | 4KW | 4.4KW | 5KW | 5KW |
| Rate Grid Voltage | 220/230V | |||||
| Grid Voltage Range | 180~270V Adjustable | |||||
| Rated Grid Frequency | 50/60Hz | |||||
| Grid Frequency Range | 47~52Hz or 57~62Hz | |||||
| Phase Quantity | Single Phase | |||||
| Max Output Current | 13.3A | 15.7A | 16A | 21A | 23.8A | |
| Output Power Factor | >0.99 | |||||
| THD | <3% | |||||
| Grid DC Component | <20mA | |||||
| Max Efficiency | 97.5% | 97.8% | ||||
| European Efficiency | 96.8% | 97% | ||||
| MPPT Efficiency | 99% | |||||
| Protection | ||||||
| DC Reverse Connection | Yes | |||||
| AC Short Circuit | Yes | |||||
| AC Output Over Current | Yes | |||||
| Output Over Voltage | Yes | |||||
| Insulation Resistance | Yes | |||||
| RCD Testing | Yes | |||||
| Surge Protection | Yes | |||||
| Grid Mornitoring | Yes | |||||
| Anti-Island | Yes | |||||
| Over Heat | Yes | |||||
| Integrated DC Switch | Optional | |||||
Basical Data
| Model Number | GCI-2.5K-2G | GCI-3K-2G | GCI-3.6K-2G | GCI-4K-2G | GCI-4.6K-2G | GCI-5K-2G |
| Dimension | 339*565*172.5mm | |||||
| Weight | 14.5kg | 16.5kg | ||||
| Topology | Transformer Less | |||||
| Self Consumption | <1W At Night | |||||
| Working Environmental Temp. | -25~+60°C | |||||
| Working Environ.Humidity | 0~95% | |||||
| Protection Level | IP65 | |||||
| Noise | <30dBA | |||||
| Cooling | Natural convection | |||||
| Max.Working Elevation | 2000m | |||||
| Design Life Span | 20Years | |||||
| Grid Connect Standard | EN50438,G83/2,AS4777,VDE0126-1- | |||||
| Safty Standard | EN61000;-6-1:2007,EN61000-6-3:2007,IEC62109-1/2;AS3100;NB/T32004 | |||||
Interface
| DC | MC-4 Terminal |
| AC | IP67 Connector |
| Display | LCD 2*20Z |
| Communication | RS485,Wifi,GPRS(optional) |
Communication
WIF/ GPRS for single inverter
For more than one inverter
Workshop Tour
Projects Reference
