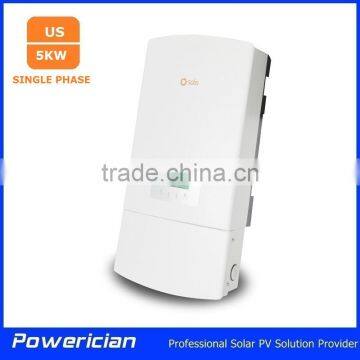

US Standard On Grid Inverter 5KW Solis Brand High Quality Inverter

FOB Price

USD $1,050 - $1,290 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

US Standard On Grid Inverter 5KW Solis Brand High Quality Inverter

Ginlong is a top brand solar inverter from China with high quality and excellent reliablility.

Powerician, authorized distributor of Ginlong, supply full range of Ginlong solar inverter, from 700W to 30kW.

Also, we provide whole on-grid solar power system solution with Ginlong inverter and our high quality solar panles, brackets, wires etc.

Now US standard on grid inverter provide warrantee of 10 Years!

Product Description

Features

Model No.	Solis-4K	Solis-4.6K		Solis-5K
DC Input
Max. Input Power	4.6kW	5.3kW		5.8kW
Max. Input Voltage	600V
Start-up Input Voltage	120V
MPPT Voltage Range	100~500V
Max. Input Current	10+18A
MPPT Number	2
Max Inputs String Number	2

AC Output
Rated Output Power	4kW	4.6kW		5kW
Max. Transient Power	4.4kW	5kW		5kW
Max. Output Current	21A	23.8A		23.8A
Power Factor	>0.99
Total Harmonic Distortion(THD)	<3%
DC Injection Current	<20ma
Grid Frequency Range	47~52Hz/57~62Hz(adjustable)
Rated Grid Frequency	50/60Hz
Rated Grid Voltage	220/230/240V
Grid Voltage Range	180~270V(adjustable)
Operating Phase	Single

Efficiency
Max. Efficiency	97.8%
EU Efficiency	97%
MPPT Efficiency	99.9%

Protection
	DC Reverse-Polarity Protection Output Over Current Protection Output Over Voltage Protection Insulation Resistance Monitoring Residual Current Detection Surge Protection Grid Monitoring Island Protection Temperature Protection Integrated DC Switch Optional
General Data
Dimension	339W565H172.5D mm
Weight	14.5kg		16.5kg		16.5kg
Topology	Transformer less
Self-Consumption	<1W(Night)
Operating Ambient Temperature Range	-25~+60°C
Ingress Protection	IP65
Noise Emission (Typical)	<30DB
Cooling Concept	Natural Convection
Max. Operation Altitude	2000M
Designed Life Time	>20 Years
Grid connection Standard	UL1741 G83/2 AS4777 VDE0126-1-1
Relative Humidity	0~95%
Safety/EMC Standard	EN61000-1:2007; EN61000-6-3:2007; IEC62190-1/2;AS3100

Features
DC Connection	MC-4 Connector
AC Connection	IP67 Rated Plug
Display	LCD 2*20 Z.
Interface	RS485, Wifi/GPRS optional
Warranty	5~10 Years

Communication

WIF/ GPRS for single inverter

For more than one inverter

ALL DATA FOR REFERENCE ONLY.

THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.

POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.

PHOTOS ARE AUTHORIZED BY GINLONG TECHNOLOGIES PLEASE DO NOT COPY.
