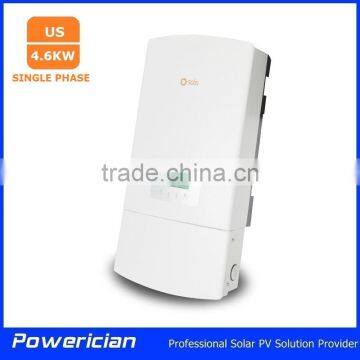

4.6KW On Grid Solar Inverter UL Certificated for Residential Solar Projects High Quality Inverter from Solis

Model No.

Solis-4K-US

Solis-4.6K-US

Solis-5K-US

DC Input

Max. Input Power

4.6kW

5.3kW

5.8kW

Max. Input Voltage

600V

Start-up Input Voltage

120V

MPPT Voltage Range

100~500V

Max. Input Current

15A+15A

MPPT Number

2

Max Inputs String Number

2

AC Output

Rated Output Power

4kW

4.6kW

5kW

Max. Transient Power

4.4kW

5kW

5kW

Max. Output Current

21A

23.8A

23.8A

Power Factor

>0.99

Total Harmonic Distortion(THD)

<3%

DC Injection Current

<20ma

Grid Frequency Range

47~52Hz/57~62Hz(adjustable)

Rated Grid Frequency

50/60Hz

Rated Grid Voltage

220/230/240V

Grid Voltage Range

180~270V(adjustable)

Operating Phase

Single

Efficiency

Max. Efficiency

97.8%

EU Efficiency

97%

MPPT Efficiency

99.9%

Protection

DC Reverse-Polarity Protection

Output Over Current Protection

Output Over Voltage Protection

Insulation Resistance Monitoring

Residual Current Detection

Surge Protection

Grid Monitoring

Island Protection

Temperature Protection

Integrated DC Switch Optional

General Data

Dimension

339W*565H*172.5D mm

Weight

14.5kg

16.5kg

16.5kg

Topology

Transformer less

Self-Consumption

<1W(Night)

Operating Ambient Temperature Range

-25~+60°C

Ingress Protection

IP65

Noise Emission (Typical)

<30DB

Cooling Concept

Natural Convection

Max. Operation Altitude

2000M

Designed Life Time

>20 Years

Grid connection Standard

UL1741 G83/2 AS4777 VDE0126-1-1

Relative Humidity

0~95%

Safety/EMC Standard

EN61000-1:2007; EN61000-6-3:2007; IEC62190-1/2;AS3100

Features

DC Connection

MC-4 Connector

AC Connection

IP67 Rated Plug

Display

LCD 2*20 Z.

Interface

RS485, Wifi/GPRS optional

Warranty

5~10 Years
