Home > Products > On Grid Solar Inverter > 2.5KW String Solar Inverter Single Phase for Rooftop Solar On Grid Solar Inverter

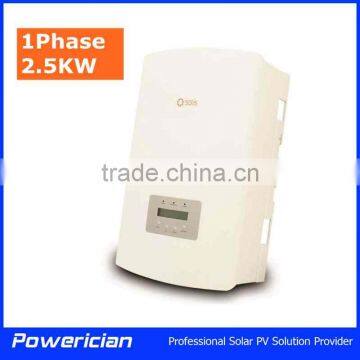

2.5KW String Solar Inverter Single Phase for Rooftop Solar On Grid Solar Inverter
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
-
On Grid Solar Inverter 6KW Solar Inverter US Standard for Rooftop Solar Project Three Phase Solar Inverter
-
3KW US Standard Solar Inverter On Grid Inverter 3KW for Rooftop Solar
-
4.6KW On Grid Solar Inverter UL Certificated for Residential Solar Projects High Quality Inverter from Solis
-
US Standard 15KW 3 Phase On Grid Solar Inverter Grid Tie Inverter IP65 Dual MPPT
-
2.5KW Solar Inverter US Standard Single Phase for Home Rooftop Solar
-
US Standard Sing Phase 3.6KW Solar Inverter On Grid for Rooftop Solar Power String Inverter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GINLONG | |
| Model Number | GCI-2.5K-2G | Specification | Normal | |
| Application | Home | Output Voltage (V) | 220/230 | |
| Solar Power (W) | 2500Wp |
Product Description
2.5KW Single Phase String Inverter Solar Wind Dual Function for Rooftop
Ginlong is a top brand solar inverter from China with high quality and excellent reliablility.
Powerician, authorized distributor of Ginlong, supply full range of Ginlong solar inverter, from 700W to 30kW.
Also, we provide whole on-grid solar power system solution with Ginlong inverter and our high quality solar panles, brackets, wires etc.
on grid solar inverter for your applicaiton.
2.5KW
on String Solar Inverter Single Phase for Rooftop Solar
Features
- Dual functional for both solar PV and wind turbine
- Extral wide input range
- Advancec MPPTalgorithm
- Full protection
- High efficiency
- RS485,GPRS,Wifi,mobile phone APP monitoring supported
Electrical Data
on grid solar inverter
| Model No. | GCI-2.5K-2G | GCI-3K-2G | GCI-3.6K-2G | GCI-4K-2G | GCI-4.6K-2G | GCI-5K-2G |
| Input | ||||||
| Max Input Power | 3KW | 3.5KW | 4.2KW | 4.6KW | 5.3KW | 5.8KW |
Max Input Voltage | 600V | |||||
Start Voltage | 120V | |||||
| MPPT Voltage | 100~500V | |||||
| Max Input Current | 10+10A | 15A+15A | ||||
| Output | ||||||
| Rated Output Power | 2.5KW | 3KW | 3.6KW | 4KW | 4.6KW | 5KW |
| Max Output Power | 2.8KW | 3.3KW | 4KW | 4.4KW | 5KW | 5KW |
| Rate Grid Voltage | 220/230V | |||||
| Grid Voltage Range | 180~270V Adjustable | |||||
| Rated Grid Frequency | 50/60Hz | |||||
| Grid Frequency Range | 47~52Hz or 57~62Hz | |||||
| Phase Quantity | Single Phase | |||||
| Max Output Current | 13.3A | 15.7A | 16A | 21A | 23.8A | |
| Output Power Factor | >0.99 | |||||
| THD | <3% | |||||
| Grid DC Component | <20mA | |||||
| Max Efficiency | 97.5% | 97.8% | ||||
| European Efficiency | 96.8% | 97% | ||||
| MPPT Efficiency | 99% | |||||
| Protection 2.5KW String Solar Inverter Single Phase for Rooftop Solar | ||||||
| DC Reverse Connection | Yes | |||||
| AC Short Circuit | Yes | |||||
| AC Output Over Current | Yes | |||||
| Output Over Voltage | Yes | |||||
| Insulation Resistance | Yes | |||||
| RCD Testing | Yes | |||||
| Surge Protection | Yes | |||||
| Grid Mornitoring | Yes | |||||
| Anti-Island | Yes | |||||
| Over Heat | Yes | |||||
| Integrated DC Switch | Optional | |||||
Basical Data 2.5KW String Solar Inverter Single Phase for Rooftop Solar
| Model Number | GCI-2.5K-2G | GCI-3K-2G | GCI-3.6K-2G | GCI-4K-2G | GCI-4.6K-2G | GCI-5K-2G |
| Dimension | 339*565*172.5mm | |||||
| Weight | 14.5kg | 16.5kg | ||||
| Topology | Transformer Less | |||||
| Self Consumption | <1W At Night | |||||
| Working Environmental Temp. | -25~+60°C | |||||
| Working Environ.Humidity | 0~95% | |||||
| Protection Level | IP65 | |||||
| Noise | <30dBA | |||||
| Cooling | Natural convection | |||||
| Max.Working Elevation | 2000m | |||||
| Design Life Span | 20Years | |||||
| Grid Connect Standard | EN50438,G83/2,AS4777,VDE0126-1- | |||||
| Safty Standard | EN61000;-6-1:2007,EN61000-6-3:2007,IEC62109-1/2;AS3100;NB/T32004 | |||||
Interface
| DC | MC-4 Terminal |
| AC | IP67 Connector |
| Display | LCD 2*20Z |
| Communication | RS485,Wifi,GPRS(optional) |
Communication 2.5KW String Solar Inverter Single Phase for Rooftop Solar
WIF/ GPRS for single inverter
on grid solar inverter
For more than one inverter/
on grid solar inverter 2.5KW String Solar Inverter Single Phase for Rooftop Solar
2.5KW String Solar Inverter Single Phase for Rooftop Solar
2.5KW String Solar Inverter Single Phase for Rooftop Solar
2.5KW String Solar Inverter Single Phase for Rooftop Solar
on grid solar inverter
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
PHOTOS ARE AUTHORIZED BY GINLONG TECHNOLOGIES PLEASE DO NOT COPY.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
2.5KW String Solar Inverter Single Phase for Rooftop Solar
