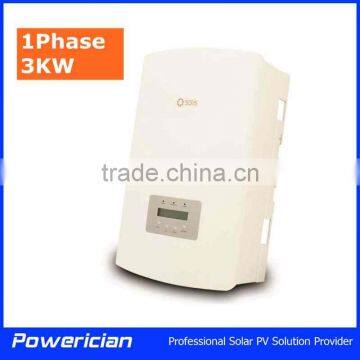

Home Rooftop Solar Inverter 3KW Single Phase Inverter Solis Brand Grid Tied
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
-
Mini Solar Inverter 2KW Rooftop Solar Inverter Solis Brand On Grid Solar Inverter
-
2.5KW String Solar Inverter Single Phase for Rooftop Solar On Grid Solar Inverter
-
On Grid Solar Inverter 6KW Solar Inverter US Standard for Rooftop Solar Project Three Phase Solar Inverter
-
3KW US Standard Solar Inverter On Grid Inverter 3KW for Rooftop Solar
-
4.6KW On Grid Solar Inverter UL Certificated for Residential Solar Projects High Quality Inverter from Solis
-
US Standard 15KW 3 Phase On Grid Solar Inverter Grid Tie Inverter IP65 Dual MPPT
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GINLONG | |
| Model Number | GCI-3K-2G | Specification | Normal | |
| Application | Home | Output Voltage (V) | 220/230 | |
| Solar Power (W) | 3000Wp |
Product Description
3000W Sting Solar Inverter Ginlong Brand for Rooftop Solar PV
Ginlong is a top brand solar inverter from China with high quality and excellent reliablility.
Powerician, authorized distributor of Ginlong, supply full range of Ginlong solar inverter, from 700W to 30kW.
Also, we provide whole on-grid solar power system solution with Ginlong inverter and our high quality solar panles, brackets, wires etc.
Home Rooftop Solar Inverter 3KW Single Phase Inverter Solis Brand Grid Tied
Features
- Dual functional for both solar PV and wind turbine
- Extral wide input range
- Advancec MPPTalgorithm
- Full protection
- High efficiency
- RS485,GPRS,Wifi,mobile phone APP monitoring supported
Electrical Data
Home Rooftop Solar Inverter 3KW Single Phase Inverter Solis Brand Grid Tied
| Model No. | GCI-2.5K-2G | GCI-3K-2G | GCI-3.6K-2G | GCI-4K-2G | GCI-4.6K-2G | GCI-5K-2G |
| Input | ||||||
| Max Input Power | 3KW | 3.5KW | 4.2KW | 4.6KW | 5.3KW | 5.8KW |
Max Input Voltage | 600V | |||||
Start Voltage | 120V | |||||
| MPPT Voltage | 100~500V | |||||
| Max Input Current | 10+10A | 15A+15A | ||||
| Output | ||||||
| Rated Output Power | 2.5KW | 3KW | 3.6KW | 4KW | 4.6KW | 5KW |
| Max Output Power | 2.8KW | 3.3KW | 4KW | 4.4KW | 5KW | 5KW |
| Rate Grid Voltage | 220/230V | |||||
| Grid Voltage Range | 180~270V Adjustable | |||||
| Rated Grid Frequency | 50/60Hz | |||||
| Grid Frequency Range | 47~52Hz or 57~62Hz | |||||
| Phase Quantity | Single Phase | |||||
| Max Output Current | 13.3A | 15.7A | 16A | 21A | 23.8A | |
| Output Power Factor | >0.99 | |||||
| THD | <3% | |||||
| Grid DC Component | <20mA | |||||
| Max Efficiency | 97.5% | 97.8% | ||||
| European Efficiency | 96.8% | 97% | ||||
| MPPT Efficiency | 99% | |||||
| Protection | ||||||
| DC Reverse Connection | Yes | |||||
| AC Short Circuit | Yes | |||||
| AC Output Over Current | Yes | |||||
| Output Over Voltage | Yes | |||||
| Insulation Resistance | Yes | |||||
| RCD Testing | Yes | |||||
| Surge Protection | Yes | |||||
| Grid Mornitoring | Yes | |||||
| Anti-Island | Yes | |||||
| Over Heat | Yes | |||||
| Integrated DC Switch | Optional | |||||
Basical Data
Home Rooftop Solar Inverter 3KW Single Phase Inverter Solis Brand Grid Tied
| Model Number | GCI-2.5K-2G | GCI-3K-2G | GCI-3.6K-2G | GCI-4K-2G | GCI-4.6K-2G | GCI-5K-2G |
| Dimension | 339*565*172.5mm | |||||
| Weight | 14.5kg | 16.5kg | ||||
| Topology | Transformer Less | |||||
| Self Consumption | <1W At Night | |||||
| Working Environmental Temp. | -25~+60°C | |||||
| Working Environ.Humidity | 0~95% | |||||
| Protection Level | IP65 | |||||
| Noise | <30dBA | |||||
| Cooling | Natural convection | |||||
| Max.Working Elevation | 2000m | |||||
| Design Life Span | 20Years | |||||
| Grid Connect Standard | EN50438,G83/2,AS4777,VDE0126-1- | |||||
| Safty Standard | EN61000;-6-1:2007,EN61000-6-3:2007,IEC62109-1/2;AS3100;NB/T32004 | |||||
Interface
Home Rooftop Solar Inverter 3KW Single Phase Inverter Solis Brand Grid Tied
| DC | MC-4 Terminal |
| AC | IP67 Connector |
| Display | LCD 2*20Z |
| Communication | RS485,Wifi,GPRS(optional) |
Communication
Home Rooftop Solar Inverter 3KW Single Phase Inverter Solis Brand Grid Tied
WIF/ GPRS for single inverter
For more than one inverter
Home Rooftop Solar Inverter 3KW Single Phase Inverter Solis Brand Grid Tied
Home Rooftop Solar Inverter 3KW Single Phase Inverter Solis Brand Grid Tied
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
PHOTOS ARE AUTHORIZED BY GINLONG TECHNOLOGIES PLEASE DO NOT COPY.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
