Home > Products > On Grid Solar Inverter > Single Phase Solar Inverter 1500W for Rootop Solar System Dual MPPT Inverter

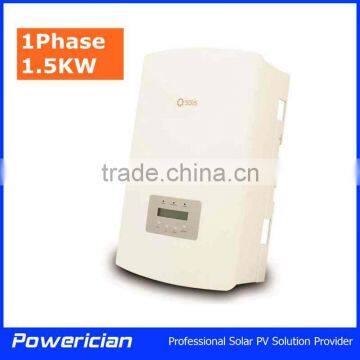

Single Phase Solar Inverter 1500W for Rootop Solar System Dual MPPT Inverter
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
-
String Inverter 1000W Solis Brand High Quality Solar Inverter for Home Rooftop
-
Home Rooftop Solar Inverter 3KW Single Phase Inverter Solis Brand Grid Tied
-
Mini Solar Inverter 2KW Rooftop Solar Inverter Solis Brand On Grid Solar Inverter
-
2.5KW String Solar Inverter Single Phase for Rooftop Solar On Grid Solar Inverter
-
On Grid Solar Inverter 6KW Solar Inverter US Standard for Rooftop Solar Project Three Phase Solar Inverter
-
3KW US Standard Solar Inverter On Grid Inverter 3KW for Rooftop Solar
Product Details
| Brand Name | GINLONG | Model Number | GCI-MINI-1500 | |
| Specification | Mini | Application | Home | |
| Output Voltage (V) | 220/230 | Solar Power (W) | 1000W |
Product Description
1500W Rooftop Solar Inverter String Inverter
Ginlong is a top brand solar inverter from China with high quality and excellent reliablility.
Powerician, authorized distributor of Ginlong, supply full range of Ginlong solar inverter, from 700W to 30kW.
Also, we provide whole on-grid solar power system solution with Ginlong inverter and our high quality solar panles, brackets, wires etc.
Single Phase Solar Inverter 1500W for Rootop Solar System Dual MPPT Inverter
Features
- Gene of wind power inverter, extral wide input range
- Small and light
- Advancec MPPTalgorithm
- Full protection
- High efficiency
- RS485,GPRS,Wifi,mobile phone APP monitoring supported
Electrical Data
Single Phase Solar Inverter 1500W for Rootop Solar System Dual MPPT Inverter
Phase Solar Inverter 1500W for Rootop Solar System Dual MPPT Inverter
Yes
| Model | GCI-MINI-700 | GCI-MINI-1000 | GCI-MINI-1500 | GCI-MINI-2000 |
| Input | ||||
| Max Input Power | 900W | 1200W | 1800W | 2400W |
| Max Input Voltage | 450V | 500V | ||
| Start Voltage | 60V | |||
| MPPT Range | 50-400V | |||
| Max Input Current | 10A | |||
| MPPT/Input | 1 MPPT 1 String Input | |||
| Output | ||||
| Rated Output Power | 700W | 1000W | 1500W | 2000W |
| Max Output Power | 800W | 1100W | 1650W | 2200W |
| Rated Grid Voltage | 220/230V | |||
| Grid Voltage Range | 180~270V(Adjustable) | |||
| Rated Grid Frequency | 50/60Hz | |||
| Working Frenq.Range | 47-52Hz or 57-62HZ Adjustable | |||
| Phase Number | Single Phase | |||
| Max.Output Current | 4.4A | 6.1A | 9.2A | 12.2A |
| Output Power Factor | >0.99 | |||
| THD | <3% | |||
Grid DC Component | <20mA | |||
| Max Efficiency | 96.7% | |||
| European Efficiency | 96.2% | |||
| MPPT Efficiency | 99.9% | |||
| Protection | ||||
| DC Reverse Connection | Yes | |||
| AC Short Circuit | Yes | |||
| AC Output Over Current | Yes | |||
| Output Over Voltage | Yes | |||
| Insulation Resistance | Yes | |||
| RCD Testing | Yes | |||
| Surge Power Protection | Yes | |||
| Grid Connection Mornitoring | Yes | |||
| Anti-Island | Yes | |||
| Over Heat Protection | Yes | |||
| Integrated DC Switch | Optional | |||
Basical Data
| Model Number | GCI-MINI-700 | GCI-MINI-1000 | GCI-MINI-1500 | GCI-MINI-2000 |
| Dimension | 270*417*124mm | |||
| Weight | 5.2kg | 5.6kg | ||
| Topology | Transformer Less | |||
| Self Consumption | <1W At Night | |||
| Working Environmental Temp. | -25~+60°C | |||
| Working Environ.Humidity | 0~95% | |||
| Protection Level | IP65 | |||
| Noise | <30dBA | |||
| Cooling | Natural convection | |||
| Max.Working Elevation | 2000m | |||
| Design Life Span | 20Years | |||
| Grid Connect Standard | EN50438,G83/2,AS4777,VDE0126-1- | |||
| Safty Standard | EN61000;-6-1:2007,EN61000-6-3:2007,IEC62109-1/2;AS3100;NB/T32004 | |||
Interface
| DC | MC-4 Terminal |
| AC | IP67 Connector |
| Display | LCD 2*20Z |
| Communication | RS485,Wifi,GPRS(optional) |
Single Phase Solar Inverter 1500W for Rootop Solar System Dual MPPT Inverter
Single Phase Solar Inverter 1500W for Rootop Solar System Dual MPPT Inverter
Single Phase Solar Inverter 1500W for Rootop Solar System Dual MPPT Inverter
Communication
WIF/ GPRS for single inverter
For more than one inverter
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
PHOTOS ARE AUTHORIZED BY GINLONG TECHNOLOGIES PLEASE DO NOT COPY.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
