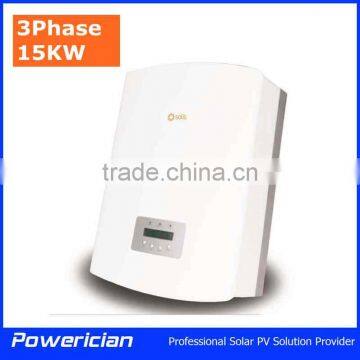

Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
- 1000 Set / Sets per Month
- Shanghai
- T/T D/P D/A Credit Card PayPal
You May Like
-
Three Phase On Grid Solar Inverter 20kw Solis Brand Dual MPPT Inverter
-
Triphase 380V 20KW On Grid Solar Inverter Dual MPPT Input IP65 Protection for Monocrystalline and Polycrystalline Silicon
-
5KW Solar Inverter Single Phase for Rooftop Solar System Solis Brand High Quality Solar Inverter
-
4600W Single Phase 220V String Inverter Solis Brand High Quality
-
3.6KW On Grid Rooftop Solar Inverter String Solar Inverter 3600W Solis Brand
-
Single Phase Solar Inverter 1500W for Rootop Solar System Dual MPPT Inverter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Solis | |
| Model Number | Solis-15K | Specification | Normal | |
| Application | Commercial | Output Voltage (V) | 380/400Vac | |
| Solar Power (W) | 15000Wp |
Product Description
Three Phase Inverter 15KW Grid Tie Solar String Inverter
Ginlong is a top brand solar inverter from China with high quality and excellent reliablility.
Powerician, authorized distributor of Ginlong, supply full range of Ginlong solar inverter, from 700W to 30kW.
Also, we provide whole on-grid solar power system solution with Ginlong inverter and our high quality solar panles, brackets, wires etc.
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
Features
- Dual functional for both solar PV and wind turbine
- Extral wide input range
- Advancec MPPTalgorithm
- Full protection
- High efficiency
- RS485,GPRS,Wifi,mobile phone APP monitoring supported
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
Electrical Data
| Model No. | Solis-6K | Solis-10K | Solis-15K | Solis-20K-HV |
| Input | ||||
| Max Input Power | 6.9KW | 11.5KW | 15KW | 23KW |
Max Input Voltage | 1000V | |||
Start Voltage | 330V | |||
| MPPT Voltage | 200~800V | |||
| Max Input Current | 15A+15A | 18A+18A | ||
| MPPT/String | 2/2 | 2/4 | ||
| Output | ||||
| Rated Output Power | 6KW | 10KW | 15KW | 20KW |
| Max Output Power | 6.6KW | 11KW | 15KW | 20KW |
| Rate Grid Voltage | 380/400Vac | 480Vac | ||
| Grid Voltage Range | 313~470V Adjustable | 384~576V Adjustable | ||
| Rated Grid Frequency | 50/60Hz | |||
| Grid Frequency Range | 47~52Hz or 57~62Hz | |||
| Phase Quantity | 3 Phase | |||
| Max Output Current | 10.0A | 16.7A | 25A | 25.1A |
| Output Power Factor | >0.99 | |||
| THD | <3% | |||
| Grid DC Component | <20mA | <50mA | ||
| Max Efficiency | 98.2% | 98.3% | ||
| European Efficiency | 97.3% | 97.5% | ||
| MPPT Efficiency | 99.9% | |||
| Protection | ||||
| DC Reverse Connection | Yes | |||
| AC Short Circuit | Yes | |||
| AC Output Over Current | Yes | |||
| Output Over Voltage | Yes | |||
| Insulation Resistance | Yes | |||
| RCD Testing | Yes | |||
| Surge Protection | Yes | |||
| Grid Mornitoring | Yes | |||
| Anti-Island | Yes | |||
| Over Heat | Yes | |||
| Integrated DC Switch | Optional | |||
Basical Data
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
| Dimension | 430*600*220mm | |||
| Weight | 27kg | 30kg | ||
| Topology | Transformer Less | |||
| Self Consumption | <1W At Night | |||
| Working Environmental Temp. | -25~+60°C | |||
| Working Environ.Humidity | 0~95% | |||
| Protection Level | IP65 | |||
| Noise | <30dBA | |||
| Cooling | Natural convection | |||
| Max.Working Elevation | 2000m | |||
| Design Life Span | 20Years | |||
| Grid Connect Standard | EN50438,G83/2,AS4777,VDE0126-1- | |||
| Safty Standard | EN61000-6-1:2007,EN61000-6-3:2007,IEC62109-1/2;AS3100;NB/T32004 | |||
Interface
| DC | MC-4 Terminal |
| AC | IP67 Connector |
| Display | LCD 2*20Z |
| Communication | RS485,Wifi,GPRS(optional) |
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
Communication
WIF/ GPRS for single inverter
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
For more than one inverter
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
PHOTOS ARE AUTHORIZED BY GINLONG TECHNOLOGIES PLEASE DO NOT COPY.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
