Home > Products > Portable Solar Power Kit > 800W Home Use Solar Power Kit Off Grid Power Supply
800W Home Use Solar Power Kit Off Grid Power Supply
- 600 Set / Sets per Month
- Shenzhen Shanghai
- T/T L/C D/P D/A
You May Like
-
600W Solar Power Kit Camping Power Supply Off Grid Power Kit
-
Solar Home System 600W Output SHS Off Grid
-
Solar Home System 600W Output SHS Off Grid Solar Power kit
-
40A 48V MPPT Charge Controller for Off Grid System Home Use Solar Charge Regulator
-
MPPT Charge Controller 40A for 12V Battery Bank High Efficiency Save 30%
-
40A MPPT Solar Charger for 48V Battery Bank High Efficiency Charge Controller for Home Power System
Product Details
| Brand Name | Powerician | Model Number | POU800 | |
| Specification | Mini | Application | Home | |
| Output Voltage (V) | 110/220V | Load Power (W) | 800 | |
| Solar Power (W) | 250 | Work Time (h) | 10 |
Product Description
800W Home Use Solar Power Kit Off Grid Power Supply

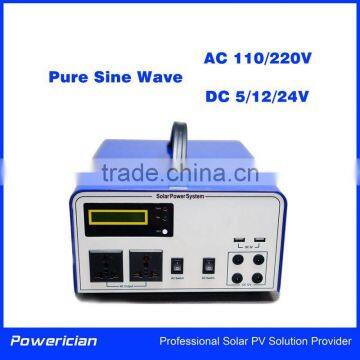

Powerician POU series solar power unit is an all-in-one solar power unit combining solar and grid input, AC and DC out put, with connect portal for batteries to store energy.
AC 110V/220V, DC 12V and 5V is provided by POU unit.
800W Home Use Solar Power Kit Off Grid Power Supply
With low volume and weight, it is a good option of energy supply for home use, small office, camping and as emergency power source.
OEM and ODM is accepted on this product.
Application
- At rural place beyond utility grid access
- For camping power supply
- For islands
- On board boats
800W Home Use Solar Power Kit Off Grid Power Supply
Features:
- Provide DC and AC outputs
- Built-in solar & grid chargers
- Pure sine wave output
- Battery energy management
- Full protection
- Portable, plug and play installation
- USB Port available for mobile devices
- Friendly to normal solar panels
- LED display
- Low self consumption
Electronic protection:
- Output short circuit
- Battery over charge
- Battery over discharge
- System over load
- Over-heat
- PV reverse connection
- Battery reverse connection
800W Home Use Solar Power Kit Off Grid Powerician Power Supply
Parameters
Model | POU300 | POU600 | POU800 | POU1000 | |
Solar Charger Controller | Operation Voltage | 12V | 24V | ||
Max PV Voltage(Voc) | 25V | 60V | |||
Rated Charging Current(PMW) | 10A | 20A | |||
Self-consumption | ≤9mA | ||||
DC Output | DC Output | USB 5V 2A | |||
DC 12V 2A*4 | DC 24V 2A*4 | ||||
AC Output | Output Wave | Pure Sine Wave | |||
Output Voltage | 110V/220V±5% | ||||
Output Frequency | 50/60 ±2HZ | ||||
Rated Output Power | 300W | 600W | 800W | 1000W | |
Surge Capacity | 600W | 1200W | 1600W | 2000W | |
Efficiency | >85% | ||||
Battery | Under Voltage Warning | 11V | 22V | ||
Low Voltage Shut Off | 10.5V | 21V | |||
High Voltage Shut Off | 16V | 32V | |||
Floating Charge Voltage | 13.6V | 27.2V | |||
Over Charge Protection Volt. | 14.4V | 28.8V | |||
System Data | Working Temperature | 0°~+45°C | |||
Cooling Fan | Auto start above 40°C or 5A | ||||
Physical | Dimension | 305*255*143mm | 335*285*143mm | ||
Weight | 5.5kg | 5.7kg | 6.0kg | 6.2kg | |
System Configuration
System Configuration | ||||
Model No. | POU300 | POU600 | POU800 | POU1000 |
Battery | 12V/100AH | 24V100AH | 24V100AH | 24V/200AH |
Solar Panel | 120W | 250W | 250W | 250W*2 |
Load | 3W Led*4-10Hour | 3W Led*4-10Hour | 3W Led*4-10Hour | 3W Led*4-10Hour |
60W Fan-5Hour | 60W Fan-10Hour | 60W Fan-10Hour | 60W Fan-15Hour | |
50W TV-6Hour | 50W TV-10Hour | 50W TV-10Hour | 50W TV-15Hour | |
65W Laptop-3Hour | 65W Laptop-5Hour | 65WLaptop-6Hour | 65W Laptop-10Hour | |
@DOD76% | 150W Fridge-1Hour | 150W Fridge-2Hour | 150W Fridge-4Hour | |
Aging
Packing
800W Home Use Solar Power Kit Off Grid Power Supply powerician Product
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
