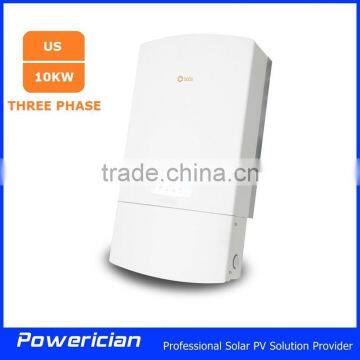

10KW String Inverter for Commercial Solar Power Three Phase Inverter US Standard

Model No.

Solis6K-US

Solis10KUS

Solis15KUS

Solis20KUS

DC Input

Max. Voltage

1000V

Startup Voltage

330V

Operating MPPT Range

200~800V

Max Input Current per MPPT

15A+15A

18A+18A

MPPT Number

2/2

AC Output

Nominal output power

6000W

10000W

15000W

20000W

Continuous Output Power

6600W

11000W

15000W

15000W

Nominal Grid Voltage

480V

Operating Voltage Range

427~523V

Operating Phase

Three

Max Continuous Output Current

10.0A

16.7A

21A

25A

Output Power Factor

>0.99

Grid Current THD

<3%

DC injection Current

<20mA

<50mA

Operating Frequency Range

60Hz

Efficiency

Max. Efficiency

98.2%

98.3%

CEC Weighted Efficiency

97.3%

97.5%

MPPT Efficiency

99.9%

Protection

DC Reverse-Polarity Protection

AC Short Circuit Protection

AC Output Overcurrent Protection

Output Over Voltage Protection-Varistor

Ground Fault Monitoring

Grid Monitoring

Islanding Protection

Temperature Protection

Integrated DC Switch

Rapid Shutdown-Optional

General Data

Dimension

16.9W*31.7H*10.6D inch

Weight

71 lbs

Topology

Transformer less

Self-Consumption

<1W(Night)

Operating Ambient Temperature Range

-13~+140°F

Operating Range Utility Frequency

47~52 or 57~62 (Adjustable)

Enclosure Type

NEMA 4X

Noise Emission (Typical)

<30DB

Cooling Concept

Natural Convection

Max. Operation Altitude without Derate

6560 Ft

Designed Life Time

>20 Years

Compliance

CAN/CSAC22.2 N107.1,UL1741,UL1998,UL1699B,FCC part 15 Class B

Relative Humidity

0~95%

EMC

EN61000-1:2007; EN61000-6-3:2007; IEC62109-1/2;AS3100

Features

Conduct Connection

Plugged 3/4” openings for bottom and side

Display

LCD 2*20 Z.

Interface

RS485, Wifi/GPRS optional

Warranty

10 Years
