Product Details
| Place of Origin | Zhejiang, China | Brand Name | Solis | |
| Model Number | Solis-10K | Specification | Normal | |
| Application | Commercial | Output Voltage (V) | 380/400Vac | |
| Solar Power (W) | 10000Wp |
Product Description

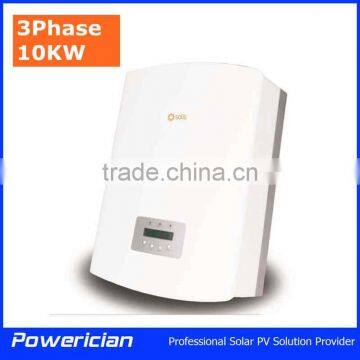

10KW 3 Phase String Inverter Grid Tie Solar Inverter
Commercial Solar Inverter 10KW 3 phase Inverter On Grid for Commercial Solar Projects
Ginlong is a top brand solar inverter from China with high quality and excellent reliablility.
Powerician, authorized distributor of Ginlong, supply full range of Ginlong solar inverter, from 700W to 30kW.
Also, we provide whole on-grid solar power system solution with Ginlong inverter and our high quality solar panles, brackets, wires etc.
Solis On Grid Inverter 10KW for Commercial Rooftop Solar DUAL MPPT Inverter from Ginlong
Commercial Solar Inverter 10KW 3 phase Inverter On Grid for Commercial Solar Projects
Features
- Dual functional for both solar PV and wind turbine
- Extral wide input range
- Advancec MPPTalgorithm
- Full protection
- High efficiency
- RS485,GPRS,Wifi,mobile phone APP monitoring supported
Electrical Data
| Model No. | Solis-6K | Solis-10K | Solis-15K | Solis-20K-HV |
| Input | ||||
| Max Input Power | 6.9KW | 11.5KW | 15KW | 23KW |
Max Input Voltage | 1000V | |||
Start Voltage | 330V | |||
| MPPT Voltage | 200~800V | |||
| Max Input Current | 15A+15A | 18A+18A | ||
| MPPT/String | 2/2 | 2/4 | ||
| Output | ||||
| Rated Output Power | 6KW | 10KW | 15KW | 20KW |
| Max Output Power | 6.6KW | 11KW | 15KW | 20KW |
| Rate Grid Voltage | 380/400Vac | 480Vac | ||
| Grid Voltage Range | 313~470V Adjustable | 384~576V Adjustable | ||
| Rated Grid Frequency | 50/60Hz | |||
| Grid Frequency Range | 47~52Hz or 57~62Hz | |||
| Phase Quantity | 3 Phase | |||
| Max Output Current | 10.0A | 16.7A | 25A | 25.1A |
| Output Power Factor | >0.99 | |||
| THD | <3% | |||
| Grid DC Component | <20mA | <50mA | ||
| Max Efficiency | 98.2% | 98.3% | ||
| European Efficiency | 97.3% | 97.5% | ||
| MPPT Efficiency | 99.9% | |||
| Protection | ||||
| DC Reverse Connection | Yes | |||
| AC Short Circuit | Yes | |||
| AC Output Over Current | Yes | |||
| Output Over Voltage | Yes | |||
| Insulation Resistance | Yes | |||
| RCD Testing | Yes | |||
| Surge Protection | Yes | |||
| Grid Mornitoring | Yes | |||
| Anti-Island | Yes | |||
| Over Heat | Yes | |||
| Integrated DC Switch | Optional | |||
Basical Data
| Dimension | 430*600*220mm | |||
| Weight | 27kg | |||
| Topology | Transformer Less | |||
| Self Consumption | <1W At Night | |||
| Working Environmental Temp. | -25~+60°C | |||
| Working Environ.Humidity | 0~95% | |||
| Protection Level | IP65 | |||
| Noise | <30dBA | |||
| Cooling | Natural convection | |||
| Max.Working Elevation | 2000m | |||
| Design Life Span | 20Years | |||
| Grid Connect Standard | EN50438,G83/2,AS4777,VDE0126-1- | |||
| Safty Standard | EN61000-6-1:2007,EN61000-6-3:2007,IEC62109-1/2;AS3100;NB/T32004 | |||
Interface
| DC | MC-4 Terminal |
| AC | IP67 Connector |
| Display | LCD 2*20Z |
| Communication | RS485,Wifi,GPRS(optional) |
Solis On Grid Inverter 10KW for Commercial Rooftop Solar DUAL MPPT Inverter from Ginlong
Communication
WIF/ GPRS for single inverter
Solis On Grid Inverter 10KW for Commercial Rooftop Solar DUAL MPPT Inverter from Ginlong
For more than one inverter
Solis On Grid Inverter 10KW for Commercial Rooftop Solar DUAL MPPT Inverter from Ginlong
Solis On Grid Inverter 10KW for Commercial Rooftop Solar DUAL MPPT Inverter from Ginlong
Com Solis On Grid Inverter 10KW for Commercial Rooftop Solar DUAL MPPT Inverter from Ginlong
mercial Solar Inverter 10KW 3 phase Inverter On Grid for Commercial Solar Projects
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
PHOTOS ARE AUTHORIZED BY GINLONG TECHNOLOGIES PLEASE DO NOT COPY.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
