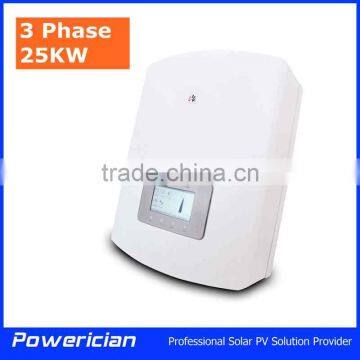

Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
- 1000 Set / Sets per Month
- Shanghai
- T/T D/P D/A Credit Card PayPal
You May Like
-
Solis Solar Inverter 36KW On Grid Solar Inverter Commercial Rooftop Solar Generator
-
On Grid Solar 30KW Inverter for Rooftop Solar System Dual MPPT Inverter IP65
-
Three Phase On Grid Solar Inverter 15kw Solis Brand Dual MPPT Inverter
-
Three Phase On Grid Solar Inverter 20kw Solis Brand Dual MPPT Inverter
-
Triphase 380V 20KW On Grid Solar Inverter Dual MPPT Input IP65 Protection for Monocrystalline and Polycrystalline Silicon
-
5KW Solar Inverter Single Phase for Rooftop Solar System Solis Brand High Quality Solar Inverter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Solis | |
| Model Number | Solis-25K | Specification | Normal | |
| Application | Commercial | Output Voltage (V) | 380/400Vac | |
| Solar Power (W) | 25000Wp |
Product Description
20KW On Grid Solar Inverter Three Phase 380V Voltage
Ginlong is a top brand solar inverter from China with high quality and excellent reliablility.
Powerician, authorized distributor of Ginlong, supply full range of Ginlong solar inverter, from 700W to 30kW.
Also, we provide whole on-grid solar power system solution with Ginlong inverter and our high quality solar panles, brackets, wires etc.
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
Features
- Dual functional for both solar PV and wind turbine
- Extral wide input range
- Advancec MPPTalgorithm
- Full protection
- High efficiency
- RS485,GPRS,Wifi,mobile phone APP monitoring supported
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
Electrical Data
| Model No. | Solis-20K | Solis-25K | Solis-30K | Solis-36K-HV |
| Input | ||||
| Max Input Power | 24KW | 30KW | 36KW | 43.2KW |
Max Input Voltage | 1000V | |||
Start Voltage | 350V | |||
| MPPT Voltage | 200~800V | |||
| Max Input Current | 18A+18A+18A+18A | |||
| MPPT/String | 4/8 | |||
| Output | ||||
| Rated Output Power | 20KW | 25KW | 30KW | 36KW |
| Rate Grid Voltage | 380/400Vac | 480Vac | ||
| Grid Voltage Range | 303~460V Adjustable | 384~576V Adjustable | ||
| Rated Grid Frequency | 50/60Hz | |||
| Grid Frequency Range | 47~52Hz or 57~62Hz | |||
| Phase Quantity | 3 Phase | |||
| Max Output Current | 28.7A | 36.1A | 43.3A | 43.3A |
| Output Power Factor | >0.99 | |||
| THD | <3% | |||
| Grid DC Component | <50mA | |||
| Max Efficiency | 98.4% | |||
| European Efficiency | 97.6% | |||
| MPPT Efficiency | 99.9% | |||
| Protection | ||||
| DC Reverse Connection | Yes | |||
| AC Short Circuit | Yes | |||
| AC Output Over Current | Yes | |||
| Output Over Voltage | Yes | |||
| Insulation Resistance | Yes | |||
| RCD Testing | Yes | |||
| Surge Protection | Yes | |||
| Grid Mornitoring | Yes | |||
| Anti-Island | Yes | |||
| Over Heat | Yes | |||
| Integrated DC Switch | Optional | |||
Basical Data
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
| Dimension | 430*600*220mm | |||
| Weight | 48kg | 53kg | ||
| Topology | Transformer Less | |||
| Self Consumption | <1W At Night | |||
| Working Environmental Temp. | -25~+60°C | |||
| Working Environ.Humidity | 0~95% | |||
| Protection Level | IP65 | |||
| Noise | <30dBA | |||
| Cooling | Natural convection | |||
| Max.Working Elevation | 2000m | |||
| Design Life Span | 20Years | |||
| Grid Connect Standard | EN50438,G83/2,AS4777,VDE0126-1- | |||
| Safty Standard | EN61000-6-1:2007,EN61000-6-3:2007,IEC62109-1/2;AS3100;NB/T32004 | |||
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
Interface
| DC | MC-4 Terminal |
| AC | IP67 Connector |
| Display | LCD 2*20Z |
| Communication | RS485,Wifi,GPRS(optional) |
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
Communication
WIF/ GPRS for single inverter
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
For more than one inverter
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
Solis 25KW Solar Inverter On Grid Inverter 3 Phase for Commercial Solar Project Rooftop Solar Project for Factories
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
PHOTOS ARE AUTHORIZED BY GINLONG TECHNOLOGIES PLEASE DO NOT COPY.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
