Intel 82572 PCIe x1 1000Base-FX SFP Ethernet Adapter With PXE Bootrom

Specifications

LREC9230PF-SFP

PCIe x1 1000Base-FX SFP Port Fiber NIC (Intel 82572 Based)

Trusted 1000BASE-SX PCI Express Gigabit Fiber Connection for Desktop

Key Features:

High-performance 1000BASE-SX network connection for PCI Express* slots

Multi-Gigabit scalability and increased uptime through advanced server features

Features:

Intel 82572GI Gigabit Controller

Load balancing on multiple CPUs

Interrupt moderation

Compatible with x4, x8, and x161 PCI Express* slots

Support for most network operating systems (NOS)

Remote management support

SFP connectors

1000BASE-SX multi-mode fiber

RoHS compliant

Intel backing

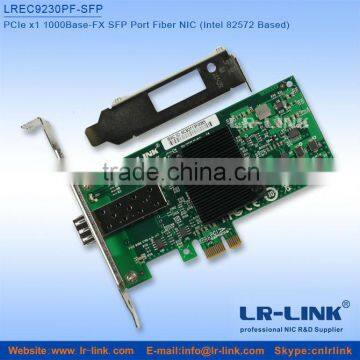

Beautiful Product Picture:

Specifications

General

Product code:LREC9230PF-SFP

Connectors:SC

IEEE standards/network topology:1000BASE-SX/LX

Wiring multi-mode fiber: (62.5 µm or 50 µm)

Adapter Product Features

Plug and play specification support Standard

Auto-negotiation, full-duplex capable

Integrated media access control (MAC) and physical layer (PHY)

Includes a full-height bracket

Cabling Distance: 275 m at 62.5 µm; 550 m at 50 µm

Network Management

Wired for Management (WfM) baseline v2.0 enabled for servers

DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP- manageable SMBus support

Remote Installation Services (RIS)

Diagnostics (loopback, testability, PHY register access)

Advanced configuration and power interface (ACPI) 1.0 power management

Wake on LAN* support over PCI Express*

PXE 2.0 enabled through boot read-only memory (ROM)

Network Operating Systems (NOS) Software Support

Windows XP
Windows CE/5.0
Windows Server 2000
Windows 7 32-bit(64-bit)
Windows Vista 32-bit(64-bit)
Windows Server 2003 32-bit(64-bit)
Windows Server 2008 32-bit(64-bit)
Windows Server 2008 R2 32-bit(64-bit)
NetWare NetWare 5.0/5.1/6.0/
DOS
Novell ODI
Linux 2.4 series kernel and 2.6.x/3.x
FreeBSD with the 9.x kernel.
OpenUNIX 8.0 (Caldera), UnixWare 7.x
Sun Solaris x86

Advanced Software Features

•Adapter Fault Tolerance (AFT)

•Switch Fault Tolerance (SFT)

•Adaptive Load Balancing (ALB)

•Fast Ether Channel* 4 (FEC)

•Gigabit Ether Channel* 4 (GEC)

•Teaming support

•Multiple teams Supports

•IEEE 802.3ad* (link aggregation control protocol) 4

•PCIe Hot Plug*/Active Peripheral Component Interconnect (PCI)

•IEEE 802.1Q* VLANs

•IEEE 802.3* (z, ab, u, x) flow control support

•TCP checksum offload —

transmission control protocol (TCP),

user datagram protocol (UDP), Internet protocol (IP)

Order Information:

PS: The above details is just for reference, if there is any change, no prior notice .
