1x LC Intel 82545EB PCI 1000Base-LX SM pci serial card With 32 bit PCI date transfer bus

Specifications

LREC7210PF-LX

PCI 1000Base-LX SM Fiber NIC (1x LC Intel 82545EB Based)

Descriptions:                                                                                                                                                                                 LREC7210PF-LX is a R&D based on Intel controller,support PCI bus,managed gigabit fiber Ethernet card to meet the FTTD in Shenzhen Lianrui Electronics CO.,LTD(LR-LINK).The LREC7210PF-LX is also the unique 32 bit PCI gigabit fiber nic in market.It also one of the hot sales gigabit fiber nic card of LREC series in Shenzhen Lianrui Electronics CO.,LTD.

LREC7210PF-LX PCI gigabit fiber card support bootrom.It will achieve real-meaning for total fiber Internet cafe,establish the strong hardware basis for Chain of Internet cafes operating companies to achieve premium and high-performance interface cafes. It has applicated successfully used in government in Guangzhou,Changsha,Tianjin and so on.

LREC7210PF-LX use the Intel 82545EB as major controller from Intel company.It has the better stable,complaint fuctions.It is also used in Great Hall of the People, CSIC, AVIC and other large state enterprises and institutions, units and provincial authorities.

With a self-configuring PCI interface, delivers high throughput while conserving CPU resources.Enhance server performance further by teaming multiple Server Adapters with Intel’s advanced server feature software for multi-Gigabit scalability and redundant failover capability.With a flexible design that fits almost any type of PCI bus,the standards-based management features and wide network operating system support help to ensure extensive compatibility with the latest server and networking environments.

Features:

plug and play

32 bit PCI date transfer bus,compliant with PCI 2.2

6 layer PCB, double copper thickness,5OZ heavy gold plate to improve the working stability

1000Mbps fiber module,LC connector,MM or SM available

Run the speed of 66MHz 32bit PCI bus to reach higher 1000BASE-LX and 1000BASE-SX fuctions

1000Mbps fast ethernet ,Full duplex or half-duplex operation,reach 2000Mbps in full duplex

Support IEEE 802.3x flow control

Support IP Unicast broadcast and multicast address filtering mechanism                                                                                                                                                                                                                                                                        Support IP multicast packet filterreduces host CPU use

Support high density server rack installation type of optional ultra-thin stents

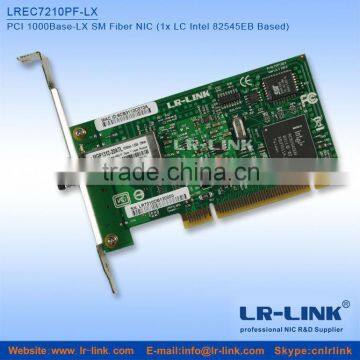

Product picture:

Professional Quality Trustworthy

Shenzhen Lianrui Electronics CO.,LTD has developed for 8 years,has been to the professional supplier for the high-quality fiber communicate products.We have accumulated a lot of rearching and manufacturing experience in fiber communication erea,especially FTTD application,it is the top in this field.To satisfy the market needs, Independent R &D kinds of fiber network cards,this is unique in the market all over the world.It was applicated successfully.To welcome the develop trend of “the integration of telecommunications networks, cable tv networks and the internet”and “optical access for replacing copper access”,Lianrui input all our energy the LREC fiber nic brand,to supply more professional,more stable,more flexible,more products choice for users.

High Performance Control,High performance Assurance

Intel® 82545EB Gigabit Controller,provides high performance, reliability, and low power use ina single integrated Gigabit Ethernet controller chip.The features and benefits is as follows:

Support for most NOSs, Enables widespread deployment INTEL gigabit SingleDriver technolog, Common driver suite for Gigabit Ethernet reduces installation Complexity

Support 32 bit PCI 1.0 and PCI 2.2 bus,complaint with 64 bit PCI bus, fits almost any type of PCI bus

Remote Management Support(WfM,RIS,SNMP/DMI), Reduces support costs with remote management based on industry-wide standards

Support IEEE 802.3ab stardard,support the normal gigabit Ethernet internet stardard

Full-height and low profile, screw-on brackets included with each adapter, for installation in high-density 1U and 2U servers Interrupt Moderation, Delivers increased performance while significantly reducing CPU utilization Large Send Off-load/TCP Segmentation Off-load, which enables wire speed performance with low CPU utilization

Supply switch device for fault tolerance and checking, use for checking compliant,extent normal working time.

Professional Design,Cast Highly Stable Fiber Network

Strict wiring requirements,High standard isometric line walk line equidistant difference way,control the equilong in 5mil,improve the signal transfer quality,assure the functions.

Efficient high-power power management chipset to provide a safe, stable and reliable power supply for the network card.Good layout, the appropriate packaging, quality of materials used,the network card will with high performance and stability. At the same time, make the product more beautiful, generous

Wavelength and distance:

Ordering Information:

PS: The above details is just for reference,if there is any change,no inform will have.

Certificate Showing:
