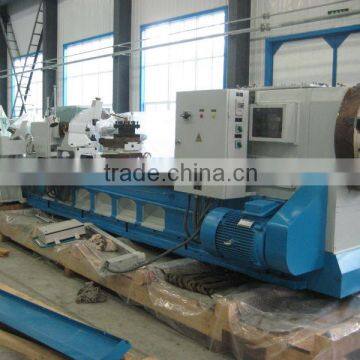

Catalogue of Heavy Horizontal Lathe for Heavy Machining
- Dalian China
- T/T
You May Like
-
CW61250x5000 10 tons load heavy duty lathe machine
-
CW61180x6m 10 tons load heavy duty horizontal lathe machine
-
CW61200x5000 10 tons load china heavy duty lathe machine
-
CWA6185x5000 4 tons load heavy duty engine lathe for sale
-
CW61180x3m 10 tons load china heavy duty metal lathe
-
CC61500 Series heavy duty horizontal lathe with 63 Tons Load Capacity
Quality Choice
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 2000mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CW6285 CW61100 CW61125 CW61140 CW61160 CW61180 CW61200 | |
| Voltage | 220V 380V 400V 415V 440V 480V | Certification | ISO9001:2008; GB/T19001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Catalogue of Heavy-duty Lathe Technical Data
| Item | Unit | CW61100E CW62100E | CW61125E CW62125E | CW61140E CW62140E | CW61125 CW62125 | CW61140 CW62140 | CW61160 CW62160 | CW61180 CW62180 | CW61200 CW62200 |
Maximum Swing over bed | mm(in) | 1000(40) | 1250(50) | 1400(56) | 1250(50) | 1400(56) | 1600(64) | 1800(72) | 2000 |
Maximum Swing over gap | mm(in) | 1250(50) | 1500 (60) | 1650(66) | 1750(870) | 1930(77) | 2110(84) |
|
|
Maximum Swing over carriage | mm(in) | 650(26) | 900(36) | 980(38) | 900(36) | 1100(44) | 1280(51) | 1480(59) | 1600 |
Maximum turning length | mm(in) | 1500~16000(60~640) | 1500~16000(60~640) | 1500~16000(60~640) | 1500~16000(60~640) | 1500~16000(60~640) | 1500~16000(60~640) | 1500~16000(60~640) | 16000 |
Maximum weight of workpiece | kg | 6000/8000 | 6000/8000 | 6000/8000 | 8000/10000 | 8000/10000 | 8000/10000 | 8000/10000 | 10000 |
Width of the bed | mm(in) | 755(33) | 755(33) | 755(33) | 970(39) | 970(39) | 970(39) | 970(39) | 970(39) |
Spindle noses No. | ISO | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 |
Diameter of spindle front bearing | mm(in) | 200(8) | 200(8) | 200(8) | 200(8)/220(8.8) | 200(8)/220(8.8) | 200(8)/220(8.8) | 200(8)/220(8.8) | 200(8)/220(8.8) |
Diameter of spindle hole | mm(in) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) |
Taper hole of spindle |
| Metric No.140 | Metric No.140 | Metric No.140 | Metric No.140 | Metric No.140 | Metric No.140 | Metric No.140 | Metric No. 140 |
Number of spindle speeds |
| 21 steps(Manual operating) | 21 steps(Manual operating) | 21 steps(Manual operating) | 21(Manual operating) | 21 steps(Manual operating) | 21 steps(Manual operating) | 21 steps(Manual operating) | 21 steps(Manual operating) |
Range of spi ndle speeds | r/min | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 2.5 ~ 250 |
Main motor power | kW | AC22 | AC22 | AC22 | AC22 | AC22 | AC22 | AC22 | AC30 |
Our Service
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
