CW61200x12000 10 tons load china heavy duty lathe made in china
- Dalian/Shanghai/Tianjin China
- T/T
You May Like
-
CC61180 Series heavy duty manual horizontal lathe with 63 Tons Load Capacity
-
CW61250x8000 10 tons load heavy horizontal lathe machine for sale
-
CW61180x5m 10 tons load heavy duty manual lathe made in china
-
Manual heavy duty horizontal lathe machine
-
CCK61400 super large and super heavy cnc lathe machine with CE
-
CCK61200 heavy duty cnc horizontal lathe machine with Load Capacity 40 Tons
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 2000mm | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | CW61200x12000 heavy duty metal lathe machine | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | AC 30kW | |
| Dimension(L*W*H) | depends | Weight | depends | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

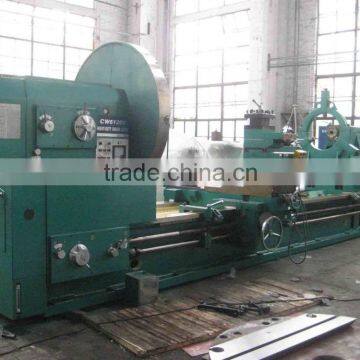

CW61200x12000 10 tons load china heavy duty lathe
Such heavy duty lathe machines have following features:
1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.
2. can also be used for drilling, boring trepanning etc.
3. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the carriage by power for cutting long taper surface.
4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.
Specifications | Unit | Parameter |
Swing over bed | mm | 2000 |
Swing over carriage | mm | 1600 |
Distance between centers | mm | 12000 |
Max. Cutting length | mm | 11800 |
Width of bed | mm | 1100 |
Support capacity between centers | T | 10 |
Spindle hole through | mm | 100 |
Spindle nose |
| A2-15 |
Taper of spindle |
| Metric No. 140 |
Spindle speed | rpm | 2.5 ~ 250 with 21 steps |
Number of feeds and range |
| 97 |
Longitudinal Feed | mm/rev | 0.1~20 |
Cross Feed | mm/rev | 0.05~6 |
Travel of middle slide | mm | 400 |
Travel of tool post | mm | 200 |
Travel of X-Axis | mm | 820 |
Number and range of longitudinal | mm | 0.064 ~ 12 |
Number and range of cross slide | mm | 0.032 ~ 6 |
Number and range of top slide | mm | 0.016 ~ 3 |
Rapid traverse | mm/min | Longitudinal 3740 |
Rapid cross slide | mm/min | 1870 |
Rapid top slide | mm/min | 935 |
No. and range of metric threads | mm | 56 kinds, 1~120 |
No. and range of inch threads | T. P. I. | 56 kinds, 30~1 / 4 |
No. and range of module threads |
| 46 kinds, 0.5~60 |
No. and range of diametric threads | D. P. | 48 kinds, 56 ~ 1/2 |
Tool shank section | mm | 45 x 45 |
Taper in tailstock quill | mm | 80, 1:7 |
Dia. Of tailstock sleeve | mm | 160 |
Max. Travel of tailstock quill | mm | 300 |
Power of main motor | kW | AC30 |
Power of rapid motor | kW | 1.5 |
Power of pump motor | kW | 0.55 |
Power of cooling motor | kW | 0.15 |
Net dimension of the machine | mm | 16040×3060×2230 |
Packing dimension of the machine | mm |
|
N. W./ N. W. | kg |
|
Name | Size | Note |
4-jaw chuck | DIA. 1600 mm | 1 Set |
Steady rest | Range 220 ~ 630 mm | 1 Set |
Dead center |
| 2 Pcs |
Reducing sleeve |
| 1 Pcs |
Living center |
| 1 Set |
Cooling system |
| Yes |
Work light |
| Yes |
Special tools |
| Yes |
kinds of colors for your choice/can be customized
