CW61180x1500mm 10 tons load heavy duty horizontal lathe machine
- 1000 Set / Sets per Month
- Dalian/Tianjian/Shanghai China
- T/T Credit Card PayPal
You May Like
-
CWA6185x8m 4 tons load heavy duty engine lathe machine
-
CWA6185x9m 4 tons load heavy duty horizontal lathe machine
-
CWA6185x10m 4 tons load heavy duty lathe machine for sale
-
CWA6185x11m 4 tons load heavy duty metal lathe price
-
CWA6185x12000m 4 tons load heavy duty lathe machine price
-
CWA62100x1500 4 tons load heavy duty gap lathe machine price
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 1800mm | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | CW61180x1500mm heavy duty horizontal lathe machine | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 22kW | |
| Dimension(L*W*H) | depends | Weight | depends | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

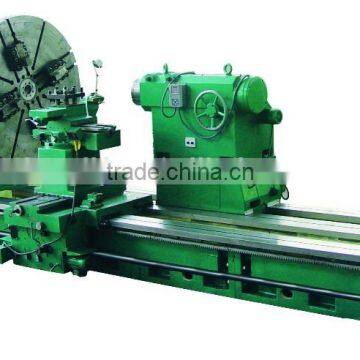

CW61180x1500mm heavy duty horizontal lathe machine
1. I.D. & O.D. cylindrical turning,
2. end face turning,
3. I.D. & O.D. cone turning,
4. grooving,
5. threading;
Specifications | Unit | Parameter |
Swing over bed | mm | 1800 |
Swing over carriage | mm | 1400 |
Distance between centers | mm | 1500 |
Max. Cutting length | mm | 1300 |
Width of bed | mm | 1100 |
Support capacity between centers | T | 10 |
Spindle bore | mm | 100 |
Spindle nose |
| A2-15 |
Taper of spindle |
| Metric No. 140 |
Spindle speed | rpm | 2 ~ 200 with 21 steps |
Number of feeds and range |
| 97 |
Max. travel of cross slide | mm | 520 |
Travel of upper slide | mm | 200 |
Travel of X-Axis | mm | 880 |
Number and range of longitudinal | mm | 0.064 ~ 12 |
Number and range of cross slide | mm | 0.032 ~ 6 |
Number and range of top slide | mm | 0.016 ~ 3 |
Rapid traverse | mm/min | Longitudinal 3740 |
Rapid cross slide | mm/min | 1870 |
Rapid top slide | mm/min | 935 |
No. and range of metric threads | mm | 45 kinds 1~120 |
No. and range of inch threads | T. P. I. | 42 kinds 30~1 / 4 |
No. and range of module threads |
| 46 kinds 0.5~60 |
No. and range of diametric threads | D. P. | 48 kinds , 60 ~ 0.5 |
Max. travel of tool post | mm | 300 |
Tool shank section | mm | 45 x 45 |
Taper in tailstock quill |
| Metric No. 80 |
Dia. Of tailstock sleeve | mm | 200 |
Max. Travel of tailstock quill | mm | 300 |
Power of main motor | kW | AC22 |
Power of rapid motor | kW | 1.5 |
Power of pump motor | kW | 0.55 |
Name | Size | Note |
4-jaw chuck | DIA. 1400 mm | 1 SET |
Steady rest | RANGE 220 ~ 630 mm | 1 SET |
Dead center |
| 2 PCS |
Reducing sleeve |
| 1 PCS |
Living center |
| 1 SET |
Cooling system |
| Yes |
Work light |
| Yes |
Special tools |
| Yes |
Name | Size | Price |
Steady rest | RANGE 500 ~ 1100 mm |
|
Follow rest. | 50 ~220 mm |
|
Support with two rollers | RANGE 850 ~ 1200mm |
|
Digital display. Both directions | Length 5000 mm |
|
| Length 6000 mm |
|
| Length 8000 mm |
|
Digital display. Both directions | Length 10000 mm |
|
Taper turning device | LENGTH 800 mm |
|
Motorized tailstock |
|
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
kinds of colors for your choice/can be customized
