Home > Products > Heavy-duty Horizontal Lathe-Manual&CNC > CWA62100x3000 4 tons load horizontal heavy duty gap lathe

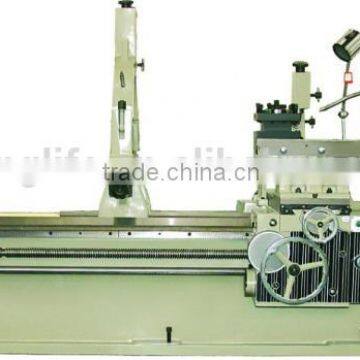

CWA62100x3000 4 tons load horizontal heavy duty gap lathe

FOB Price

US$ 31,500 - 34,200 / Set

1 Set(Min. Order)

Port Dalian/Tianjing/Shanghai/Qingdao China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	1000mm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	CWA62100x3000 horizontal heavy duty gap lathe
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	18.5kW
Dimension(LWH)	5150x1600x1600mm	Weight	6800kgs
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CWA62100x3000 horizontal heavy duty gap lathe

Main Usage

1. I.D. & O.D. cylindrical turning,

2. end face turning,

3. I.D. & O.D. cone turning,

4. grooving,

5. threading;

Main Features

Such heavy duty lathe machines have following features:

1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.

2. can also be used for drilling, boring trepanning etc.

3. with GAP and gap lathe can process the deformation parts;

4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.

5. threads types: Metric, inch, diametrical pitch, module thread

6. DRO is avaible;

7. the bed is made of high-grade cast iron, undergoing surface quenching.

Main Technical Data

Specifications	Unit	Parameter
Swing over bed	mm	1000
Swing over carriage	mm	720
Max. swing over gap	mm	1350
Gap width from chuck	mm	470
Distance between centers	mm	3000
Max. Cutting length	mm	2800
Width of bed	mm	600
Support capacity between centers	Kg	4000
Spindle hole through	mm	100
Spindle nose		A2-11
Spindle speed	rpm	5 ~ 630 with 4 Steps
Number of feeds and range		64
Number and range of longitudinal	mm	0.08 ~ 9.6
Number and range of cross slide	mm	0.04 ~4.8
Compound slide	mm	0.02 ~ 2.4
No. & range of metric threads	mm	56 Kinds 1 ~ 120
Max. Travel of cross slide	mm	600
No. and range of metric threads	mm	45 Kinds 1~120
No. and range of inch threads	T. P. I.	56 Kinds 30~1 / 4
No. and range of module threads		56 Kinds 0.5~60
No. and range of diametric threads	D. P.	56 Kinds , 60 ~ 0.5
Max. travel of tool post	mm	250
Tool shank section	mm	45 x 45
Taper in tailstock quill		Morse No. 6
Dia. Of tailstock sleeve	mm	120
Max. Travel of tailstock quill	mm	250
Power of main motor	KW	18.5
Power of rapid motor	KW	1.5
Power of pump motor	KW	0.55
Power of cooling motor	KW	0.15
Net dimension of the machine	mm	5150×1600×1600
Packing dimension of the machine	mm	5500×1900×1950
N. W./ N. W.	KG	6800/8250

Optional Accessories

1. Big steady rest(Ø300~Ø720mm)

2. Taper turning device

3. Support with two rollers

4. Motorized tailstock

5. DRO Display for X/Z directions

FAQ

Payment Term:

1. 30% down payment, 70% by T/T before shipment;

2. 100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

1. 1 Set;

2. ≥2 sets, there will be much discounts.

Warranty:

1. Normally, 12 months for parts as of delivery of the machines;

Shipment:

1. For machine itself, by sea or train(inland countries).

2. For documents, by international express. eg DHL, TNT or EMS.

Factory Overview

kinds of colors for your choice/can be customized
