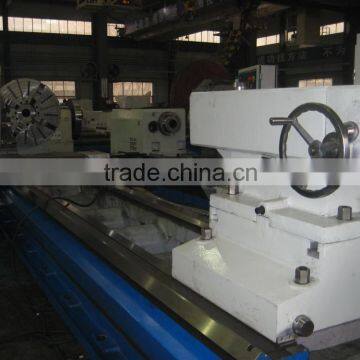

CK61200 Large and Light Duty CNC Lathe with Load Capacity 18 Tons

FOB Price

USD $373,717 - $409,394 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	2000mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CK61200
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	55kW
After-sales Service Provided	Engineers available to service machinery overseas

CNC Economic Heavy Lathe

Machine bed has three guideways or guideways on one-piece casting,
Can be used in a wide range of applications and suitable for rough machining and finish machining of ferrous and non-ferrous metal workpiece with carbide, ceramic and other tools
in facing, external cylindrical turning, internal taper cutting and curved shape and others.

Specifications	Unit	Parameter
Max.Swing over bed	mm	2000
Swing over carriage	mm	1600
Between distance	mm	8000
Dia. Of chuck	mm	1600
Cutting length	mm	7800
Width of bed	mm	1100
Support capacity between centers	kg	18000
Spindle hole through	mm	100
Spindle nose		ISO A2-20
Spindle taper	mm	1:7; 140
Spindle speed	rpm	3~ 200 with 4 steps
Ball screws in X-Axis		Star brand of Germeny
Rack in Z-Axis		By Germany
Gear box in Z-Axis		By france
Turret made by Italy		4 positions, vertical type
Brand of spindle bearing		NSK
Size of tool holder	mm	32×32
Travel of X-Axis	mm	850
Travel of Z-Axis	mm	7800
Feeding speed of X-Axis & Z-AXis	mm/min	X: 0.1 ~ 4000 Z: 0.1 ~ 6000
Rapid traverse of X-Axis & Z-AXis	mm/min	X: 4000 Z: 6000
Travel of tailstock quill	mm	300
Taper of tailstock quill	mm	1:7; 80
Rapid speed of tailstock	mm/min	3000
Controller		Siemens 802D or Fanuc oi-TD
Servo motor	Nm	41 ( for X-Axis) 41 ( for Z-Axis)
Power of main servo motor	kW	DC 55
power of rapid motor in tailstock	kW	1.5
Power of pump motor	kW	1.5
Torque of x & z-axis servo motor	nm	41
power of cooling motor	kW	0.55
Bedway		hardened & ground
Adjusting speed device of main motor		Yasakawa of Japan
Electrical power		380V/3PHASE/50HZ
Net dimension of the machine	mm	14100×2210×1790
Packing dimension of the machine	mm	1)6360×2500×2280 2) 2430×1110×1220 3) 2000×860×2000
N. W./ G. W.	kg	20000/ 1) 14500 2) 8500 3) 800
