CWA6185x10m 4 tons load heavy duty lathe machine for sale

FOB Price

USD $74,500 - $77,400 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	850mm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	CWA6185x10m heavy duty lathe machine
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	15kW
Dimension(LWH)	12,150x1,500x1,500mm	Weight	15300kgs
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

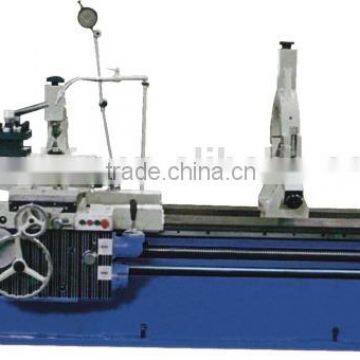

CWA6185x10m heavy duty lathe machine

Main Usage

1. I.D. & O.D. cylindrical turning,

2. end face turning,

3. I.D. & O.D. cone turning,

4. grooving,

5. threading;

Main Technical Data

Specifications	Unit	Parameter
Swing over Bed	mm	850
Max. swing over carriage	mm	520
Max. length of work piece	mm	10000
Max. length of work-piece to be turned	mm	9800
Width of Guide way	mm	600
Max. supporting capacity of centers	kg	4000
Spindle Nose		A2-11
Spindle Bore	mm	100
No. of Spindle Speed Ranges		64
Spindle Speed	rpm	5 ~ 630(4 Steps)
Longitudinal	mm	0.08~9.6
Cross slide	mm	0.04 ~ 4.9
Compound slide	mm	0.02 ~ 2.4
Metric Thread	mm	1~120 (56 Kinds)
Whitworth Thread	TPI	30~1/4 (56 Kinds)
Module Thread	mm	0.5~60 (56 Kinds)
Diametrical Thread	DP	1/2~60 (56 Kinds)
Rapid traverse speed longitudinal	mm / min	3640
Rapid traverse speed cross	mm / min	1800
Dia. Of tailstock	mm	120
Max. movement of tailstock sleeve	mm	250
Taper hole of tailstock quill		MORSE No. 6
Power of main motor	kW	15
Net dimension of the machine	mm	12,150×1,500×1,500
Packing dimension of the machine	mm	12,500×1,900×1,780
GW/NW	kg	15,300 / 17,500

Free Std Accessories

Factory Overview

kinds of colors for your choice/can be customized
