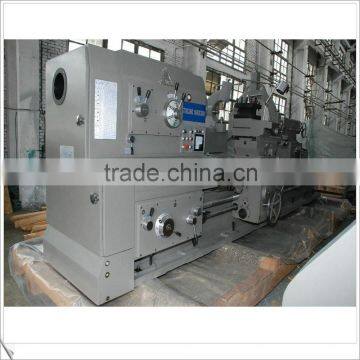

CW61250x6000 10 tons load heavy duty horizontal lathe

FOB Price

USD $47,000 - $1,521,587 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	2500mm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	CW61250x6000 heavy duty horizontal lathe
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	30kW
Dimension(LWH)	9,100x2,200x2,400mm	Weight	26000kgs
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

CW61250x6000 10 tons load heavy duty horizontal lathe

Main Usage

1. I.D. & O.D. cylindrical turning,

2. end face turning,

3. I.D. & O.D. cone turning,

4. grooving,

5. threading;

Main Technical Data

Specifications	Unit	Parameter
Max. swing over bed	mm	2500
Max. swing over carriage	mm	2030
Max. length of workpiece	mm	6000
Max. length to be machined	mm	5800
Max. width of bed	mm	1100
Max. weights of workpiece between centers	T	10
Spindle nose	mm	ISO A2-15
Taper in spindle hole		metric No. 120
Spindle bore	mm	100
Spindle Speed	rpm	Range 2~200, manual 21 steps
No. of longitudinal and cross feeds		97 kinds
Feed range per rev. of spindle	mm	Longitudinal, 0.064 ~ 12 Cross, 0.032~6
Top slide feed	mm	0.032~ 3
Metric threads	mm	45 kinds; 1 ~ 120
Whitworth threads	t.p.i.	42 kinds, 30 ~ 1/4
Module threads	mm	46 kinds; 0.5 ~ 60
Pitch threads		46 kinds; 0.5~ 60
Travel of cross slide	mm	1020
Travel of middle slide (longitudinal)	mm	400
Travel of tool post	mm	200
Rapid traverse speed	mm/min	Saddle, 3740
Cross slide	mm/min	1870
Tool post	mm/min	935
Type of tool post		Common, square
Size of tool	mm	45 × 45
Travel of quill	mm	300
Taper in quill		80 mm; 1:7
Power of main motor	kW	AC 30
Power of rapid motor	kW	1.5
Power of pump motor	kW	0.55
Power of cooling motor	kW	0.15
Electrical power		380V/3—Ph /50Hz
Net overall dimension of the machine	mm	9,100×2,200×2,400
Packing dimension of the machine	mm	1) 6,870×2,700×2,820 2) 3,320×1,540×1,210 3) 2,510×1,780×700 4) 2,350×2,250×760
N. W. / G. W.	kg	1) 26,000 ; 2) 5,800 ; 3) 1,500 ; 4) 1,500

Free Std Accessories

Optional Accessories

Name	Size	Price
Big steady rest with four pads	Range 500 to 1100 mm
Support with two rollers	Range 1200 to 1800 mm
Digital display of X/Z axis
