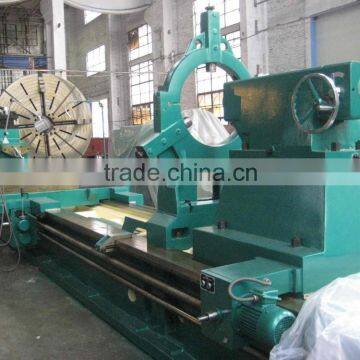

Manual heavy duty horizontal lathe machine
- Dalian China
- T/T
You May Like
-
CCK61400 super large and super heavy cnc lathe machine with CE
-
CCK61200 heavy duty cnc horizontal lathe machine with Load Capacity 40 Tons
-
CCK61160 32 Tons Load heavy duty horizontal cnc lathe
-
CK61200 Large and Light Duty CNC Lathe with Load Capacity 18 Tons
-
CW61180x8m 10 tons load heavy duty horizontal lathe made in china
-
CW61180x2m 10 tons load heavy horizontal lathe made in china
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 2500mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CW6185/CW61100/CW61125/CW61140/ CW61160/CW61180/CW61200 | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 22/30kW | |
| Dimension(L*W*H) | depends | Weight | depends | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Heavy-duty Lathe Technical Data
| Item | Unit | CW61100E CW62100E | CW61125E CW62125E | CW61140E CW62140E | CW61125 CW62125 | CW61140 CW62140 | CW61160 CW62160 | CW61180 CW62180 | CW61200 CW62200 |
Maximum Swing over bed | mm(in) | 1000(40) | 1250(50) | 1400(56) | 1250(50) | 1400(56) | 1600(64) | 1800(72) | 2000 |
Maximum Swing over gap | mm(in) | 1250(50) | 1500 (60) | 1650(66) | 1750(870) | 1930(77) | 2110(84) |
|
|
Maximum Swing over carriage | mm(in) | 650(26) | 900(36) | 980(38) | 900(36) | 1100(44) | 1280(51) | 1480(59) | 1600 |
Maximum turning length | mm(in) | 1500~16000(60~640) | 1500~16000(60~640) | 1500~16000(60~640) | 1500~16000(60~640) | 1500~16000(60~640) | 1500~16000(60~640) | 1500~16000(60~640) | 16000 |
Maximum weight of workpiece | kg | 6000/8000 | 6000/8000 | 6000/8000 | 8000/10000 | 8000/10000 | 8000/10000 | 8000/10000 | 10000 |
Width of the bed | mm(in) | 755(33) | 755(33) | 755(33) | 970(39) | 970(39) | 970(39) | 970(39) | 970(39) |
Spindle noses No. | ISO | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 |
Diameter of spindle front bearing | mm(in) | 200(8) | 200(8) | 200(8) | 200(8)/220(8.8) | 200(8)/220(8.8) | 200(8)/220(8.8) | 200(8)/220(8.8) | 200(8)/220(8.8) |
Diameter of spindle hole | mm(in) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) | 100(4)/ 130(5.2) |
Taper hole of spindle |
| Metric No.140 | Metric No.140 | Metric No.140 | Metric No.140 | Metric No.140 | Metric No.140 | Metric No.140 | Metric No. 140 |
Number of spindle speeds |
| 21 steps(Manual operating) | 21 steps(Manual operating) | 21 steps(Manual operating) | 21(Manual operating) | 21 steps(Manual operating) | 21 steps(Manual operating) | 21 steps(Manual operating) | 21 steps(Manual operating) |
Range of spi ndle speeds | r/min | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 3.15~315 2.5~250(2~200) | 2.5 ~ 250 |
Main motor power | kW | AC22 | AC22 | AC22 | AC22 | AC22 | AC22 | AC22 | AC30 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 60~150 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
