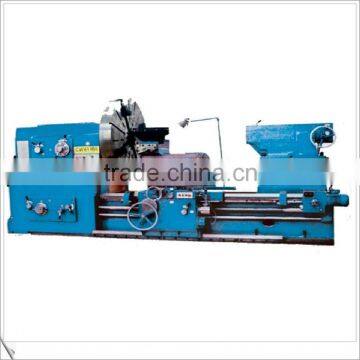

CC61250 Series heavy duty manual horizontal lathe machine made in china

FOB Price

US$ 300,500 - 911,587 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	2500mm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	CC61250 heavy duty manual horizontal lathe
Voltage	220V/380V/415V/440V 50/60Hz	Power(W)	110kW
Dimension(LWH)	depends	Weight	depends
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

CC61250 Series heavy duty manual horizontal lathe Data

Main Features

Such cnc column vertical lathe has following features:

1. width of bed 2050mm with 4 guideways;

2. big spindle bore: 160mm;

3. for heavy and supper large workpiece: turning, threading and so on;

Main Technical Data

Specifications	Unit	Parameter
Swing over Bed	mm	2500
Max. swing over carriage	mm	2000
Max. length of work piece	mm	2000~20000
Width of bed With flat 4 guideways shown as Fig.1	mm	2050
Supporting weight between centers	T	63
Spindle taper bore	mm	160; 1:4
Spindle Speed	rpm	0.63 to 125, 2 steps
Torque of faceplate	KN.m	95
Max.cutting force of tool post	KN	90
Size of tool holder	mm	70x70
Travel of cross slide	mm	800
Travel of tool post	mm	600
Feedding range in longitudinal & cross slide	mm/min	0.5TO 500 in stepless
Rapid traverse of longitudinal & cross slide	mm/min	4,000
Taper hole of tailstock sleeve	mm	160; 1:4
Dia of quill in tailstock	mm	500
Movement of quill in tailstock:	mm	200
Traverse speed of motorized tailstock	mm/min	2,500
Power of main motor with adjusting speed device	KW	DC 110
