Home > Products > CNC Slant Bed Lathe > CE Economic Slant Bed CNC Lathe CL15 for Sales Promotion

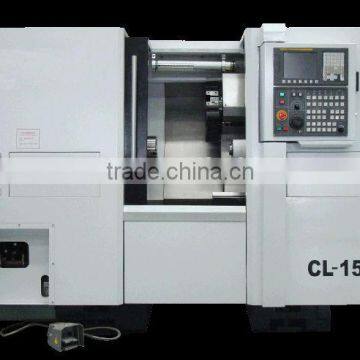

CE Economic Slant Bed CNC Lathe CL15 for Sales Promotion

FOB Price

US$ 39,653 - 51,470 / Set

1 Set(Min. Order)

Port Dalian China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	440mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CL-15 CL-20A
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	5.5/11kW
Certification	CE Certificate; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CNC Slant Bed Lathe

The new CL series of CNC slant bed lathes with rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability. The machine bed is made of heat stabilized cast-iron.Varous configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and turning length up to 3000mm,A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining

CL series lathe is a double shaft linkage, semi-loop CNC lathe with a lean bed and FANUC 0i-TD System, AC servo motor.

CNC controllers: FANUC 0i-mate/FANUC 0i TD, Siemens and others.

Item	CL15	CL20A
Swing over bed mm)	400	440
Max turning length(mm)	250/320	500
Max. turning diameter(Shafts)(mm)	160	360
Max. turning diameter(Discs)(mm)	200	300
Guide way type	linear	linear
Chuck size	6"	8"
Spindle nose	ISO A2-5	ISO A2-6
Spindle speed (rpm)	50~5000	45~4500
Main spindle motor power (S6)(kW)	5.5(7.5)	11(15)
Spindle bore diameter (mm)	46	62
Max bar diameter(mm)	32	52
Positioning accuracy:	X0.016mm Z0.020mm	X0.016mm Z0.020mm
Repeat positioning accuracy:	X0.007mm Z0.008mm	X0.007mm Z0.008mm
X-axis travel (mm)	120	165
Z-axis travel (mm)	260/330	510
X-axis rapid traverse(m/min)	15	15
Z-axis rapid traverse(m/min)	18	20
Turret: number of stations	8	8
Tool size (mm)	20×20	25×25
Tailstock quill diameter(mm)	60	80
Tailstock quill travel(mm)	80	130
Tailstock taper(MT)	3	3
Machine size: L×W×H(mm)	2130/2350×1555×1880	2760×1500×1750
Net weight(kg)	3300/3500	4800
CNC Type	FANUC 0i-T	FANUC 0i-T
