Z30 Series china hydraulic radial drilling machine for sale Quality Choice

FOB Price

US$ 4,150 - 30,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Drilling Speed	0.04~3.20mm/r	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	Z3040x13 Z3050x16 Z3063x20 Z3080 radial drilling machine
Voltage	Customer's Requirement	Power(W)	1.5~7.5 kW
Dimension(LWH)	depends	Weight	depends
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

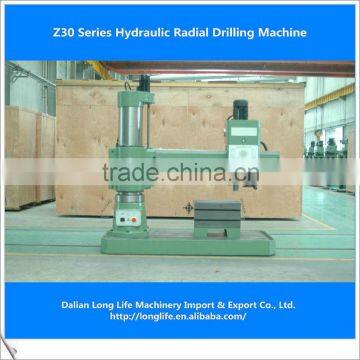

Z30 series hydraulic radial drilling machine

Main Featurers:

1. For drilling, counterboring, reaming, boring, spotting, tapping;

2. Different types: 32/40/50/63/80mm holes can be drilled;

3. Hydraulic type;

Main Technical Data:

Specifications	Unit	Z3032×9	Z3040x13	Z3050x16	Z3063 x18	Z3063 x20	Z3080 x 25
Max. drilling dia	mm	32	40	50	63	63	80
Distance from spindle nose to table surface	mm	220~1100	260~1300	320~1220	450~1675	400~1600	550~2000
Distance from spindle axis and column surface	mm	260~900	360~1300	350~1600	360~1730	450~2000	500~2500
Max. drilling dia	mm	32	40	50	63	63	80
Distance from spindle nose to table surface	mm	220~1100	260~1300	320~1220	450~1675	400~1600	550~2000
Distance from spindle axis and column surface	mm	260~900	360~1300	350~1600	360~1730	450~2000	500~2500
Rocker rotary angle		360°	360°	360°	360°	180°	180
Spindle travel	mm	120	200	315	280	400	450
Spindle speeds range	rpm		75~1200	25~2000	34~1280	20~1600	16~1250
Spindle speed step		6	6	16	12	16	16
Taper of spindle bore		MT4	MT4	MT5	MT5	MT5	MT6
Spindle feeding range	mm/r	0.10~0.25	0.10~0.25	0.04~3.20	0.10~1.00	0.04~3.20	0.04~3.2
Spindle feeding step		3	3	6	6	16	16
Main motor power	KW	1.5/2.2	2.2	4	5.5	5.5	7.5
power of radial lift motor	KW	0.55	0.75	0.75	1.5	1.5	3
Power of coolant motor	KW	0.09	0.09	0.09	0.09	0.09	0.09
N.W/G.W	kg	800	1800	3500	3500	7000	11000
Overall dimensions	mm	1400×710×1880	1800×810×2300	2500×1060×2800	2220×890×2450	3090×1250×3480	3730×1400×3828
