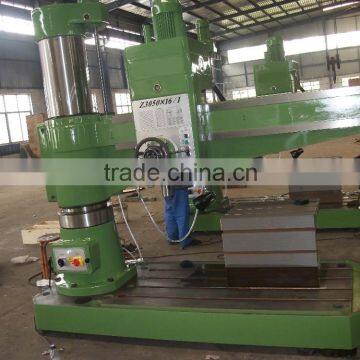

Z3050 Hot-sale hydraulic radial drilling machine for sale

FOB Price

US$ 9,100 - 11,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Drilling Speed	0.04~3.20mm/r	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	Z3050x16
Voltage	220V 380V 400V 415V 440V 480V	Power(W)	4 kW
Dimension(LWH)	2500x1070x2880mm	Weight	3500kg
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Z3050 radial drilling machine Technical Data

Product Introduction

Z3050 radial drilling machine has following features:

Major parts and critical parts are made of high strength cast and special steel material.
Heat treatment made by first-class equipment, ensuring durability.
Machining is made by means of specialized equipment, to ensure basic parts with superior quality.
Clamping for assemblies and speed-change of spindle are achieved by hydraulic power, and is sensitive and reliable. Multiple spindle speeds and feeds provide economic and high-efficiency machining.
Mechanical and electrical controls are centralized in the headstock, with convenient and rapid operation.

Main Technical Data

Specifications	Unit	Z3050 radial drilling machine
Max. drilling diameter	mm	Φ50
Distance between spindle axis and column	mm	350~1600
Distance between spindle endandworking surface of base plate	mm	370~1270
Spindle travel	mm	315
Tapered of Spindle bore		Morse 5
Range of Spindle speeds	r/min	25~2000
Steps of Spindle speeds		16
Range of Spindle feeds	mm/r	0.04~3.20
Steps of Spindle feeds		16
Rocker rotary angle		±180°
Table size	mm	500×630
Travel spindle head	mm	1250
Power of main drive motor	KW	4
Weight (N.W/G.)	kg	3500/4980
Overall dimensions	mm	2500×1070×2880
