Z3032/40/50 series smaller hydraulic radial drilling machine for sale

FOB Price

US$ 8,109 - 11,803 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Drilling Speed	0.04~3.20mm/r	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	Z3032/40/50 radial drilling machine
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	1.5~4kW
Dimension(LWH)	depends	Weight	depends different sizes
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

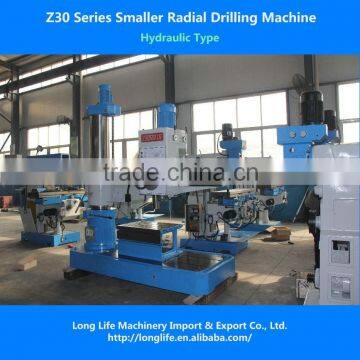

Z3032/40/50 series smaller hydraulic radial drilling machine

Product Introduction

Z3032/40/50 radial drilling machine has following features:

Main Technical Data

Specifications	Unit	Z3032×9	Z3032×10	Z3040x13	Z3040×13A	Z3050x16
Max. drilling dia	mm	32	32	40	40	50
Distance from spindle nose to table surface	mm	220~1100	220~1100	260~1300	140~1100	320~1220
Distance from spindle axis and column surface	mm	260~900	260~900	360~1300	290~1320	350~1600
Max. drilling dia	mm	32	32	40	40	50
Distance from spindle nose to table surface	mm	220~1100	220~1100	260~1300	140~1100	320~1220
Distance from spindle axis and column surface	mm	260~900	260~900	360~1300	290~1320	350~1600
Rocker rotary angle		360°	360°	360°	360°	360°
Spindle travel	mm	120	120	200	200	315
Spindle speeds range	rpm			75~1200	78~1220	25~2000
Spindle speed step		6	6	6	6	16
Taper of spindle bore		MT4	MT4	MT4	MT4	MT5
Spindle feeding range	mm/r	0.10~0.25	0.10~0.25	0.10~0.25	0.10~0.25	0.04~3.20
Spindle feeding step		3	3	3	3	6
Main motor power	KW	1.5/2.2	1.5/2.2	2.2	2.2	4
power of radial lift motor	KW	0.55	0.55	0.75	0.75	0.75
Power of coolant motor	KW	0.09	0.09	0.09	0.09	0.09
