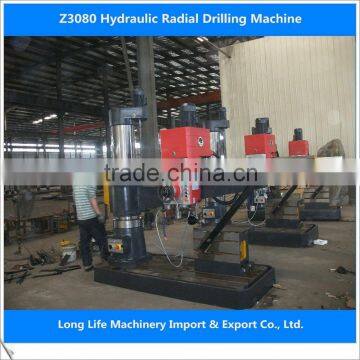

Z3080 hydraulic radial drilling machine

FOB Price

US$ 35,000 - 35,100 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Drilling Speed	0.04~3.20mm/r	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	Z3080x25 radial drilling machine
Voltage	3Ph x 220V 380V 400V 415V 440V 480V 50/60Hz	Power(W)	7.5kW
Dimension(LWH)	3730x1400x3835mm	Weight	10500kgs
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Z3080 radial drilling machine Technical Data

Product Introduction

Z3080 radial drilling machine has following features:

Major parts and critical parts are made of high strength cast and special steel material.
Heat treatment made by first-class equipment, ensuring durability.
Machining is made by means of specialized equipment, to ensure basic parts with superior quality.
Clamping for assemblies and speed-change of spindle are achieved by hydraulic power, and is sensitive and reliable. Multiple spindle speeds and feeds provide economic and high-efficiency machining.
Mechanical and electrical controls are centralized in the headstock, with convenient and rapid operation.
New painting technology and improved outward appearance reflects the specialty of machines.

Main Technical Data

Specifications	Unit	Z3080 radial drilling machine
Max. drilling diameter	mm	Φ80
Distance between spindle axis and column	mm	530~2530
Distance between spindle endandworking surface of base plate	mm	600~2050
Spindle travel	mm	600
Tapered of Spindle bore		Morse 6
Range of Spindle speeds	r/min	16~1250
Steps of Spindle speeds		16
Range of Spindle feeds	mm/r	0.04~3.20
Steps of Spindle feeds		16
Rocker rotary angle		±180°
Table size	mm	750×1000
Travel spindle head	mm	2000
Power of main drive motor	KW	7.5
Weight (N.W/G.)	kg	10500/14500
Overall dimensions	mm	3730×1400×3835
