T2140-3000 cnc deep hole drilling and boring machine

FOB Price

US$ 390,000 - 390,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Drilling Speed	5 ~650rpm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	T2140-3000 cnc deep hole drilling and boring machine
Voltage	220V/380V/400V/415V/440V/480V	Power(W)	75kW
Dimension(LWH)	11600x1500x1700 Mm	Weight	15 tons
Certification	CE;ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

T2140-3000 cnc deep hole drilling and boring machine

Main usage

special-purpose machine for cylindrical deep hole workpiece;
it can finish the boring, chambering, rolling of the inner hole;
it can be made according to user's required inner diameter and depth of inner hole.
controllers: Fanuc, Siemens and so on;

Main Technical Data

Specifications	Unit	Parameter
Max. Diameter of drilling hole	mm	50~150
Max. boring diameter of workpiece	mm	400
Max. Machining depth	mm	1,000~3,000
Width of bed	mm	800, 2 bedways
Headstock
Spindle bore	mm	130
Spindle taper	mm	metric No 140; 1:20
Spindle speed	rpm	5 ~650, 2 steps,
Boring headstock
Spindle speed	rpm	5 ~ 650, 2steps,
Feed system
Controller system		Siemens 828/D
Main motor	kw	AC 75
Motor for drilling headstock	kw	75
Servo motor for boring	nm	40
Coolant motor	kw	90
Rated pressure of coolant system	mpa	0 ~3
Flow of coolant system	l/min	100~ 800
Motor for hydraulic pump	kw	1.5
Rated pressure of hydralic system	mpa	0-6.3
Roughness of drilling & boring	μm	ra ≤ 3.2
Working environment
Power supply		According to user’s requirements
Temperature	℃	0~40
Relative humidity		≤90%

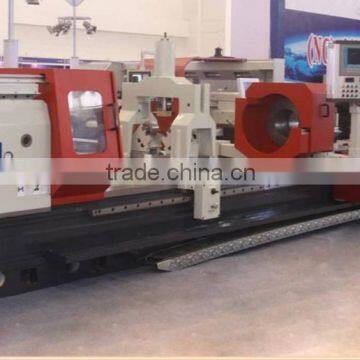

Real Photos:

Ready to delivery for Turkey Customer
