Home > Products > CNC Turning Center > DL30MHSTY twin spindle cnc turning center for sale

DL30MHSTY twin spindle cnc turning center for sale

FOB Price

US$ 208,459 - 339,706 / Set

1 Set(Min. Order)

Port Dalian China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Turning Center
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	500mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	DL-25MHYS cnc turning center
Voltage	3Ph/220V 380V 400V 415V 440V 480V 50/60Hz	Power(W)	12.5/22.5kW
Dimension(LWH)	5520x2615x200mm	Weight	12000kgs
Certification	CE Certificate; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

DL30MHSTY twin spindle cnc turning center

Brief Introduction

1.The DL-MHSTY series cnc turning centers are designed with 45 degree one piece slant bed structure,

2.double spindles and double turrets with Y-axis, X,Y,Z three axes under control,

3.12 positions servo driven on both turrets, can accomplish bi-direction machining of the work piece.

4. each turret can work with main and sub spindle (C1, C2) to achieve synchronous 4 axes movement,

and complete complicated shape components machining.

Standard Configuation:

5. 45°overall inclined bed,

6. Double Spindle,double knives, Four-axis(X,Y,Z,C)Linkage,Double knives with a Y-axis and power turret,

7. 12-station servo Power Turret, with 1 pc of Radial, axial momentum knife ;

8. Double-spindle chuck:10″Hollow chuck;

9. Lateral waste device.

10. CE Standard and CE Certificate;

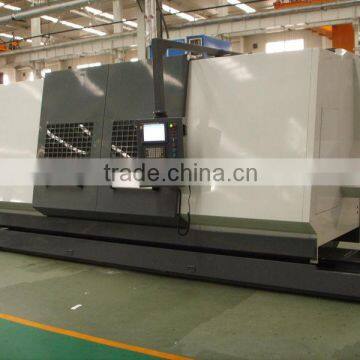

Detail Photos

Main Technical Data

Model	unit	DL30MHSTY twin spindle cnc turning center
Max. swing over bed	mm	260
Max. turning dia	mm	260
Max. turning length	mm	1160
Spindle
Chuck size		10″Hydraulic(thru hole)
Max. Spindle speed	rpm	3000
Spindle bore	mm	86
Main spindle motor power	kW	18.5/25.5
Sub-spindle
Chuck size		10″Hydraulic(thru hole)
Max. Spindle speed	rpm	3000
Dia. of spindle through hole(mm)	mm	86
Main spindle motor power	kW	18.5/25.5
Turret
Live tool quantity		2
Number of tool stations		12
Tool Shank Size(OD)	mm	25×25
Tool Shank Size(ID)	mm	Φ40/32 /25/20/16
Max.speed of live tool	rpm	4000
Travel
X1&X2 axis travel	mm	215/215
Z1&Z2 axis travel	mm	880/80
Y axis travel	mm	±60
W axis(sub spindle) travel	mm	1160
Net weight	kg	12000

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129
