Home > Products > CNC Turning Center > DL40MHx3000 CE heavy duty 3 axis cnc turning center/slant bed cnc lathe for sale

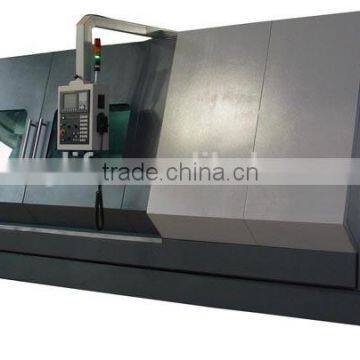

DL40MHx3000 CE heavy duty 3 axis cnc turning center/slant bed cnc lathe for sale

FOB Price

USD $85,294 - $282,573 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Dalian China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	800mm	Place of Origin	China
Brand Name	DALIAN	Model Number	DL40MHx3000 cnc turning center
Voltage	220V 380V 400V 415V 440V 480V	Power(W)	22/30kW
Dimension(LWH)	8800x2600x2700mm	Weight	18500kgs
Certification	CE Certificate; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

DL40MHx3000 heavy duty 3 axis cnc turning center

Brief Introduction

DL-series cnc turning center has following features:
1. One-piece casting with high rigid structure providing solid and stable performance.

2. 45 degree slant bed with sound vibration absorbing features.

3. THK ball screws,high precision linear guide way,automatic lubricating system guarantees, smooth transmission with sound static and dynamic characteristics.

4. Integral wide-range AC spindle motor features high torque output at low speed.

5. Turning, drilling, milling can be achieved with the Italy imported 12 station hydraulic turret.

6. Live tooling, C-axis, rigid tapping and robust tailstock generating;

7. State-of-the-art machining, Enclosed guards offers waterproof and chip-free environment;

8. CE Standard and CE Certificate;

9. with C-axis and Living tooling;

Detail Photos

Main Technical Data

Specifications	Unit	DL40MNx3000 cnc turning center
Max. swing over bed	mm	800
Max. turning length	mm	3000
Max. turning dia(various shafts)	mm	550
Max. turning dia(discs)	mm	750
Chuck size		15"
Spindle nose		ISO A2–11
Spindle speed	r/min	20~2000
Main spindle motor power	kW	22/30
Dia. of spindle through hole	mm	100
Max. Bar dia	mm	84
Min. resolution		0.001
Rapid traverse X and Z axis	m/min	12/12
Cutting feed X and Z axis	mm/min	0~5000
X/Z servo motor torque	Nm	22/30
X -axis travel	mm	400
Z-axis travel	mm	3100
Positioning precision of X/Z axis	mm	0.012/0.004
Repetitive positioning precision of X/Z axis	mm	0.006/0.025
Turret type/Number of stations		live tooling could be located on all 12 position
Mode for turret selection		random
Indexing time(one step/full step)	s	0.4/1.85
Max. tail stock dia	mm	160
Max. tail stock travel	mm	180
Weight	kg	18500
Dimensions	mm	8800x2600x2700

Std Configuration

1. 45°overall inclined bed ,

2. spindle Stepless Speed,

3. 15″hydraulic Solid chuck,

4. 12-station hydraulic turret,Hydraulic tailstock,

5. Lateral waste device, Closed-end protection,

6. Box guideway;

7. CE Standard and CE Certificate;
