Home > Products > CNC Turning Center > DL25MHx1500 advanced slant bed cnc lathe/cnc turning center for sale

DL25MHx1500 advanced slant bed cnc lathe/cnc turning center for sale

FOB Price

US$ 85,294 - 282,573 / Set

1 Set(Min. Order)

Port Dalian China
Payment TermsT/T PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Turning Center
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	800mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	DL25x1500 cnc turning center
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	18.5(22)kW
Dimension(LWH)	4400X1865X1900mm	Weight	8300kgs
Certification	CE Certificate; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

DL25X1500 cnc turnign center for sale

Brief Introduction

DL-series cnc turning center has following features:
1. One-piece casting with high rigid structure providing solid and stable performance.

2. 45 degree slant bed with sound vibration absorbing features.

3. THK ball screws,high precision linear guide way,automatic lubricating system guarantees, smooth transmission with sound static and dynamic characteristics.

4. Integral wide-range AC spindle motor features high torque output at low speed.

5. Turning, drilling, milling can be achieved with the Italy imported 12 station hydraulic turret.

6. Live tooling, C-axis, rigid tapping and robust tailstock generating;

7. State-of-the-art machining, Enclosed guards offers waterproof and chip-free environment;

8. CE Standard and CE Certificate;

9. with C-axis and Living tooling;

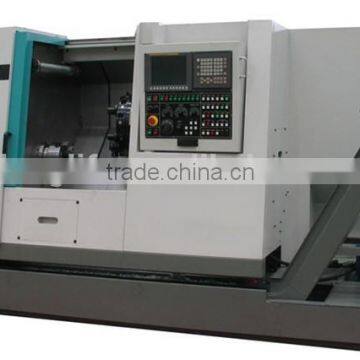

Detail Photos

Main Technical Data

Specifications	Unit	DL25x1500 cnc turning center
Max. swing over bed	mm	Φ520
Max. turning length	mm	1000/1500
Max. turning dia(various shafts)	mm	Φ310
Max. turning dia(discs)	mm	Φ500
Chuck size		10"
Spindle nose		ISOA2-8
Spindle speed	r/min	35~3500
Main spindle motor power	kW	18.5/22
Dia. of spindle through hole	mm	Φ87
Max. Bar dia	mm	Φ74
Min. resolution		0.001
Rapid traverse X and Z axis	m/min	12/12
Cutting feed X and Z axis	mm/min	0.01~5000
X/Z servo motor torque	Nm	12/22
X -axis travel	mm	260
Z-axis travel	mm	1100/1600
Positioning precision of X/ Z axis	mm	0.010/0.020
Repetitive positioning precision of X/ Z axis	mm	0.006/0.012
Turret type/Number of stations		live tooling could be located on all 12 position
Indexing time(one step/full step)	s	0.48/1
Max. tail stock dia	mm	Φ85
Max. tail stock travel	mm	139
Machine size: L×W×H	mm	3900X1865X1900
Weight	Kg	7800

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

Factory Overview

New Appearance:
