DL32MHx3000 CE 3 axis slant bed cnc turning lathe/cnc turning center
- Dalian China
- T/T Credit Card PayPal
You May Like
-
DL40MHx2000 CE heavy duty 3 axis cnc turning center for sale
-
DL32MHx1500 CE advanced slant bed cnc lathe/cnc turning center for sale
-
DL20MHx500 CE advanced cnc turning center for sale
-
DL25MH Series Heavy-duty CNC Turning Center with CE
-
Z30 Series china hydraulic radial drilling machine for sale
Quality Choice
-
Z3050/63/80 mid-sized hydraulic radial drilling machine for sale
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 680mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | DL32MHx3000 cnc turning center | |
| Voltage | 220V 380V 400V 415V 440V 480V | Power(W) | 22/30kW | |
| Dimension(L*W*H) | 6584x2082x2050mm | Weight | 10000kgs | |
| Certification | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

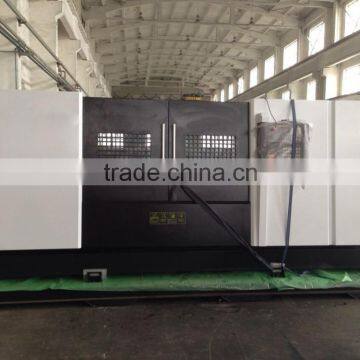

DL32MHx3000 CE 3 axis cnc turning center
DL32MH cnc turning center has following features:
1. One-piece casting with high rigid structure providing solid and stable performance.
2. 45 degree slant bed with sound vibration absorbing features.
3. THK ball screws,high precision linear guide way,automatic lubricating system guarantees, smooth transmission with sound static and dynamic characteristics.
4. Integral wide-range AC spindle motor features high torque output at low speed.
5. Turning, drilling, milling and tapping can be achieved with the Italy imported 12 station hydraulic turret.
6. Live tooling, C-axis, rigid tapping and robust tailstock generating;
7. State-of-the-art machining, Enclosed guards offers waterproof and chip-free environment;
8. CE Standard and CE Certificate;
9. with C-axis and Living tooling;
10. 3-axis linkage;
Specifications | Unit | DL32MHx3000 cnc turning center |
Max. swing over bed | mm | 680 |
Max. turning length | mm | 3000 |
Max. turning diavarious shafts) | mm | 400 |
Max. turning diadiscs) | mm | 600 |
Chuck size |
| 15" |
Spindle nose |
| ISO A2–11 |
Spindle speed | r/min | 20~2000 |
Main spindle motor power | kW | 22/30 |
Dia. of spindle through hole | mm | 100 |
Max. Bar dia | mm | 84 |
Min. resolution |
| 0.001 |
Rapid traverse X and Z axis | m/min | 13/13 |
Cutting feed X and Z axis | mm/min | 0~5000 |
X/Z servo motor torque | Nm | 22/22 |
X -axis travel | mm | 375 |
Z-axis travel | mm | 2030 |
Positioning precision of X/Z axis | mm | 0.012/0.020 |
Repetitive positioning precision of X/Z axis | mm | 0.006/0.012 |
Turret type/Number of stations |
| live tooling could be located on all 12 position |
Mode for turret selection |
| random |
Indexing time(one step/full step) | s | 0.4/1.85 |
Max. tail stock dia | mm | 160 |
Max. tail stock travel | mm | 180 |
Weight | kgs | 10000 |
Packing size | mm | 6584x2082x2050 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
