DL40MH Series CE heavy duty 3-axis cnc turning center for sale
- Dalian China
- T/T Credit Card
You May Like
-
DL25MHx1500 advanced slant bed cnc lathe/cnc turning center for sale
-
DL20/30MH CE high precison 3 axis cnc turning center
-
DL40MHx2500 CE heavy duty slant bed cnc lathe/cnc turning center
-
DL40MHx3000 CE heavy duty 3 axis cnc turning center/slant bed cnc lathe for sale
-
DL20MHx900 CE high precision slant bed cnc lathe/cnc turning center
-
DL32MHx2000 CE advanced slant bed cnc lathe/cnc turning center
Product Details
| Condition | New | Type | Turning Center | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 800mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | DL40MH cnc turning center | |
| Voltage | 220V 380V 400V 415V 440V 480V 50/60Hz | Power(W) | 22/30kW | |
| Dimension(L*W*H) | 7800/8300/8800x2600x2700mm | Weight | 16400/17300/18500kgs | |
| Certification | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

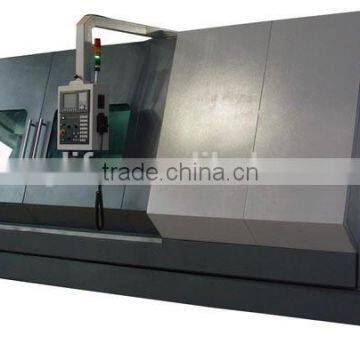

DL40MH 3-axis cnc turning center
DL-series cnc turning center has following features:
1. One-piece casting with high rigid structure providing solid and stable performance.
2. 45 degree slant bed with sound vibration absorbing features.
3. THK ball screws,high precision linear guide way,automatic lubricating system guarantees, smooth transmission with sound static and dynamic characteristics.
4. Integral wide-range AC spindle motor features high torque output at low speed.
5. Turning, drilling, milling can be achieved with the Italy imported 12 station hydraulic turret.
6. Live tooling, C-axis, rigid tapping and robust tailstock generating;
7. State-of-the-art machining, Enclosed guards offers waterproof and chip-free environment;
8. CE Standard and CE Certificate;
9. with C-axis and Living tooling;
Specifications | Unit | DL40MNx2000 cnc turning center | DL40MNx2500 cnc turning center | DL40MNx3000 cnc turning center |
Max. swing over bed | mm | 800 | 800 | 800 |
Max. turning length | mm | 2000 | 2500 | 3000 |
Max. turning dia(various shafts) | mm | 550 | 550 | 550 |
Max. turning dia(discs) | mm | 750 | 750 | 750 |
Chuck size |
| 15" | 15" | 15" |
Spindle nose |
| ISO A2–11 | ISO A2–11 | ISO A2–11 |
Spindle speed | r/min | 20~2000 | 20~2000 | 20~2000 |
Main spindle motor power | kW | 22/30 | 22/30 | 22/30 |
Dia. of spindle through hole | mm | 100 | 100 | 100 |
Max. Bar dia | mm | 84 | 84 | 84 |
Min. resolution |
| 0.001 | 0.001 | 0.001 |
Rapid traverse X and Z axis | m/min | 12/12 | 12/12 | 12/12 |
Cutting feed X and Z axis | mm/min | 0~5000 | 0~5000 | 0~5000 |
X/Z servo motor torque | Nm | 22/30 | 22/30 | 22/30 |
X -axis travel | mm | 400 | 400 | 400 |
Z-axis travel | mm | 3100 | 3100 | 3100 |
Positioning precision of X/Z axis | mm | 0.012/0.004 | 0.012/0.004 | 0.012/0.004 |
Repetitive positioning precision of X/Z axis | mm | 0.006/0.025 | 0.006/0.025 | 0.006/0.025 |
Turret type/Number of stations |
| live tooling could be located on all 12 position | live tooling could be located on all 12 position | live tooling could be located on all 12 position |
Mode for turret selection |
| random | random | random |
Indexing time(one step/full step) | s | 0.4/1.85 | 0.4/1.85 | 0.4/1.85 |
Max. tail stock dia | mm | 160 | 160 | 160 |
Max. tail stock travel | mm | 180 | 180 | 180 |
Weight | kg | 16400 | 17300 | 18500 |
Dimensions | mm | 7800x2600x2700 | 8300x2600x2700 | 8800x2600x2700 |
- 45°overall inclined bed ,
- spindle Stepless Speed,
- 15″hydraulic Solid chuck,
- 12-station hydraulic turret,
- Hydraulic tailstock,
- Lateral waste device,Closed-end protection,
- box guideway;
