DL20MHx900 CE high precision slant bed cnc lathe/cnc turning center
- Dalian China
- T/T Credit Card PayPal
You May Like
-
DL32MHx2000 CE advanced slant bed cnc lathe/cnc turning center
-
DL32MHx3000 CE 3 axis slant bed cnc turning lathe/cnc turning center
-
DL40MHx2000 CE heavy duty 3 axis cnc turning center for sale
-
DL32MHx1500 CE advanced slant bed cnc lathe/cnc turning center for sale
-
DL20MHx500 CE advanced cnc turning center for sale
-
DL25MH Series Heavy-duty CNC Turning Center with CE
Product Details
| Condition | New | Type | Other, slant bed at 45° | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 440mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | DL20MHx900 cnc turning center | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 11/15kW | |
| Dimension(L*W*H) | 4390x1900x1840mm | Weight | 6500kgs | |
| Certification | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

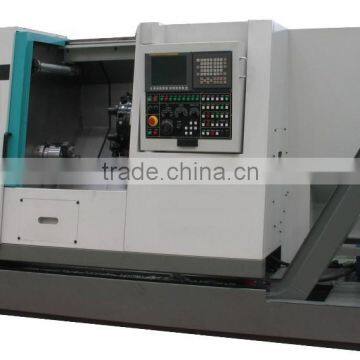

DL20MHx900 slant bed cnc lathe/cnc turning center
DL20MHx900 cnc turning center has following features:
1. One-piece casting with high rigid structure providing solid and stable performance.
2. 45 degree slant bed with sound vibration absorbing features.
3. THK ball screws,high precision linear guide way,automatic lubricating system guarantees, smooth transmission with sound static and dynamic characteristics.
4. Integral wide-range AC spindle motor features high torque output at low speed.
5. Turning, drilling, milling can be achieved with the Italy imported 12 station hydraulic turret.
6. Live tooling, C-axis, rigid tapping and robust tailstock generating;
7. State-of-the-art machining, Enclosed guards offers waterproof and chip-free environment;
8. CE Standard and CE Certificate;
9. with C-axis;
Standard Configuration:
45°overall inclined bed. servo spindle stepless speed,8″hydraulic Solid chuck,12-station servo Power Turret,Radial, axial momentum knife ,Hydraulic tailstock,Lateral waste device,Closed-end protection,Linear guideway;
Specifications | Unit | DL20MH cnc turning center |
Max. swing over bed | mm | 460 |
Max. turning length | mm | 900 |
Max. turning dia(various shafts) | mm | 260 |
Max. turning dia(discs) | mm | 380 |
Chuck size |
| 8" |
Spindle nose |
| ISOA2-6 |
Spindle speed | r/min | 45~4500 |
Main spindle motor power | kW | 11/15 |
Dia. of spindle through hole | mm | 76 |
Max. Bar dia | mm | 65 |
Min. resolution |
| 0.001 |
Rapid traverse X and Z axis | m/min | 24/24 |
Cutting feed X and Z axis | mm/min | 0~5000 |
X/Z servo motor torque | Nm | 12/12 |
X -axis travel | mm | 265 |
Z-axis travel | mm | 940 |
Positioning precision of X/Z axis | mm | 0.010/0.012 |
Repetitive positioning precision of X/Z axis | mm | 0.004/0.006 |
Turret type/Number of stations |
| live tooling could be located on all 12 position |
Mode for turret selection |
| random |
Indexing time(one step/full step) | s | 0.3/1.85 |
Max. tail stock dia | mm | 85 |
Max. tail stock travel | mm | 139 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
